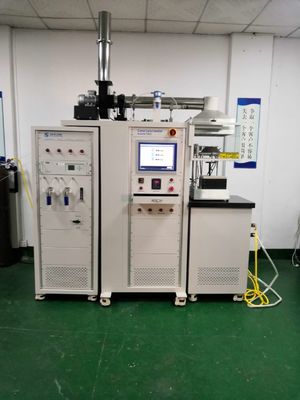

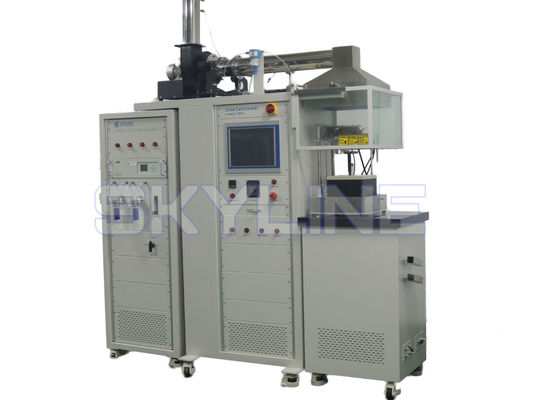

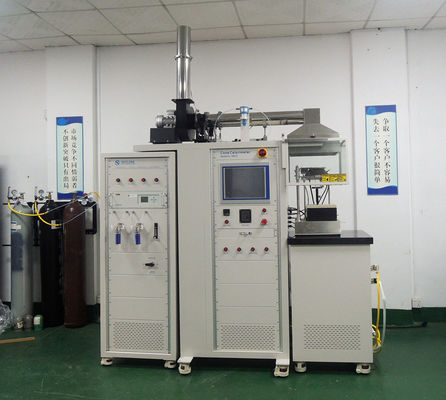

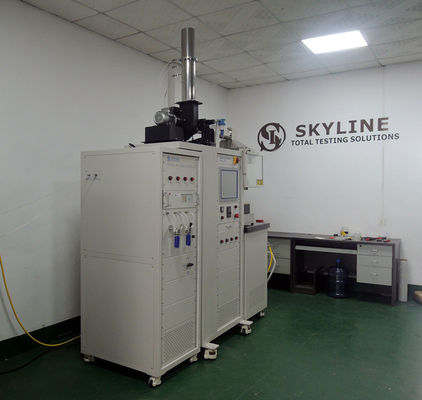

ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER

ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER

ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER
ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER
ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration
Model Number: SL-7601S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 35 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Cone Calorimeter Standards: ASTM:ASTM D6113,ASTM E1354,ASTM E1740,ASTM F1550 BS:BS 476-15 ISO:ISO 5660 EN:EN 45545-2: 2013 GB:GB/T 16172:2007
Specimen Holder Power: 106*106*2.4mm Oxygen Analyzer: Concentration Range Of 0-25%
Power Supply Voltage: AC220V AC 50Hz Exhaust Flow Rate: 0.012m3/s~0.035 M3/s (adjustable)
High Light:

Heat Release Cone Calorimeter

,

ASTM E1354 Cone Calorimeter

,

EN 45545 Building Materials Flammability Tester

ASTM E1354 Heat Release Cone Calorimeter with Imported Oxygen Analyzer



Instrument introduction
The cone calorimeter is derived from the oxygen consumption of a rectangular sample (100mm×10mm) tested by Dr. Vytenis Babrauskas at a heat radiation value of 100KW/m2.
The cone calorimeter is based on the principle of oxygen consumption of material combustion. The heat released per 1Kg of oxygen is about 13.1MJ. It measures the heat release of the material, ignition time, oxygen consumption, CO and CO2 production, and the flow of combustion gas.
The cone calorimeter strictly conforms to the size of the laboratory, and the automatic control unit designed by the test software is convenient for the user to operate. In addition, he uses a 17-inch touch screen computer, which is fully compliant with international standards.



Standards compliant
-ISO 5660 fire reaction test, heat release rate, smoke rate and mass loss rate;
-ASTM E1354 Determination of heat and visible smoke release rate of materials and products using an oxygen consumption calorimeter;
-BS 476 Pt.15 combustion and structure test of building materials, determination of product heat release rate;



Technical parameters

 Power supply voltage  AC220V AC 50Hz
 Maximum operating power  ≥5KW
 Cone heater power  ≤5KW
 Heat output heat  0~120KW/m2
 The maximum placement of the sample box  100mm × 100mm × 50mm
 Exhaust flow rate  0.012m3/s~0.035 m3/s (adjustable)
 Timing value resolution  1s error <1s/n

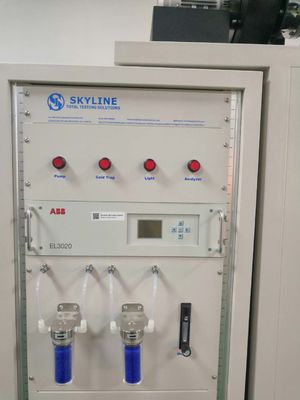

 Oxygen analysis  paramagnetic oxygen analyzer, concentration range 0-25%
 Smoke density analysis  (optional)
 Infrared analyzer  CO: 0-1% CO2: 0-10% (optional)



Sample preparation

  1. For each selected irradiance and exposed surface, 3 samples should be prepared for testing;
  2. The sample size is 100mm*100mm;
  3. Specimens with a nominal thickness of 50mm or less shall be tested with their actual thickness;
  4. For samples with a nominal thickness of more than 50mm, the non-exposed surface should be cut to reduce the thickness to 50mm;
  5. For samples with a thickness of less than 6mm, a base material that can represent the final use conditions should be added during the test so that the total thickness is not less than 6mm;
  6. For expansive materials, no less than 4 samples should be prepared for testing, one of which should be pre-tested.



Installation Requirements

Electrical: 230 volts Nominal 50 Amps
Ambient Temperature: Operating 10°C to 35°C
Dimensions: Apparatus: 1800mm (W) x 900mm x (H) x 2600mm (D)
Gas Supplies:Methane, Nitrogen, Compressed Air

Cone Calorimeter.pdf

ASTM E1354 HEAT RELEASE CONE CALORIMETER WITH OXYGEN ANALYZER 0

What is a cone calorimeter test?

A cone calorimeter is a device used to study the fire behavior of small samples of various materials in condensed phase. It is widely used in the field of Fire Safety Engineering. ... The Cone Calorimeter has long been considered the most significant bench scale instrument in the field of fire testing.
