Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine

Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine

    • Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine
    • Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine
  • Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-SF03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: neogitable
    Packaging Details: plywood case
    Delivery Time: 15 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: Lens Flame Retardant Testing Machine Thermocouple: φ6*300mm
    Size: 35 × 40 × 45 CM (L * W * H) Weight: 25Kg
    Power Supply: AC220V 50Hz Pressure: Automatic Control

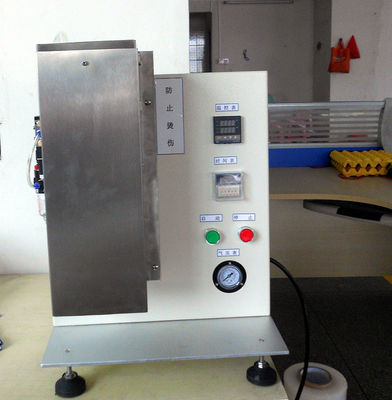

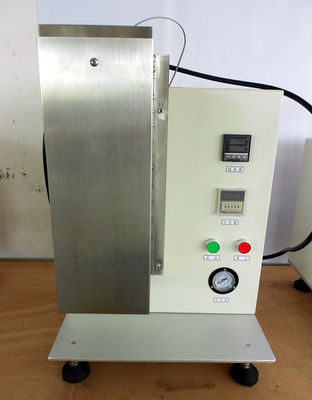

    Lens Flame Retardant Testing Machine



    Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine



    Lens Flame Retardant Testing Machine meets the standard: QB 2506-2001



    Purpose

    to determine whether the material has the required flame retardant properties to ensure the safety of users.

    Lens flame retardant testing machine test instrument requirements: can heat the regular cylindrical steel bar (φ6 * 300mm) resistance

    Flammability tester with adjustable maximum temperature of 800 ° C, equipped with pneumatic device

    Automatically raise and lower the heating rod to prevent the tester from touching the heating rod.



    Testing method

    A. Determine the test location (different materials should be tested separately);

    B. Place the test sample

    C. Start the instrument and put down the heating rod when the temperature of the heating rod rises to 650 degrees Celsius.

    The test sample is contacted for 5 seconds, and then the heating rod is removed;

    D. Observe whether the tested part of the sample continues to burn.



    Technical parameters

    1. Thermocouple: φ6*300mm

    2. Automatic pressure control

    3. Microelectronic automatic timing

    4. Size: 35 × 40 × 45 CM (length × width × height)

    5. Weight: 25 Kg

    6. Power: AC220V 50Hz parameters:

    Lab Testing Equipment QB 2506-2001 Lens Flame Retardant Testing Machine
