Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment

Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment

    • Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment
    • Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment
    • Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment
  • Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Packaging Details: plywood case
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 20/ MONTH
    Contact Now
    Detailed Product Description
    SKYLINE: Glow Wire Test Chamber Standard: IEC60695-5-10
    Material: Steel Temperature Range: 500 ~ 750℃±10℃;750 ~ 960℃±15℃
    Ironing Into Depth: 7mm ± 0.5 Mm Glow-wire Into And Through The Test Specimen: 7 Mm ± 0,5 Mm.
    Force To The Test Specimen: 0,95 N ± 0,10 N Volume Of Chamber: 0.5m3

    IEC60695-5-10 Glow Wire Tester

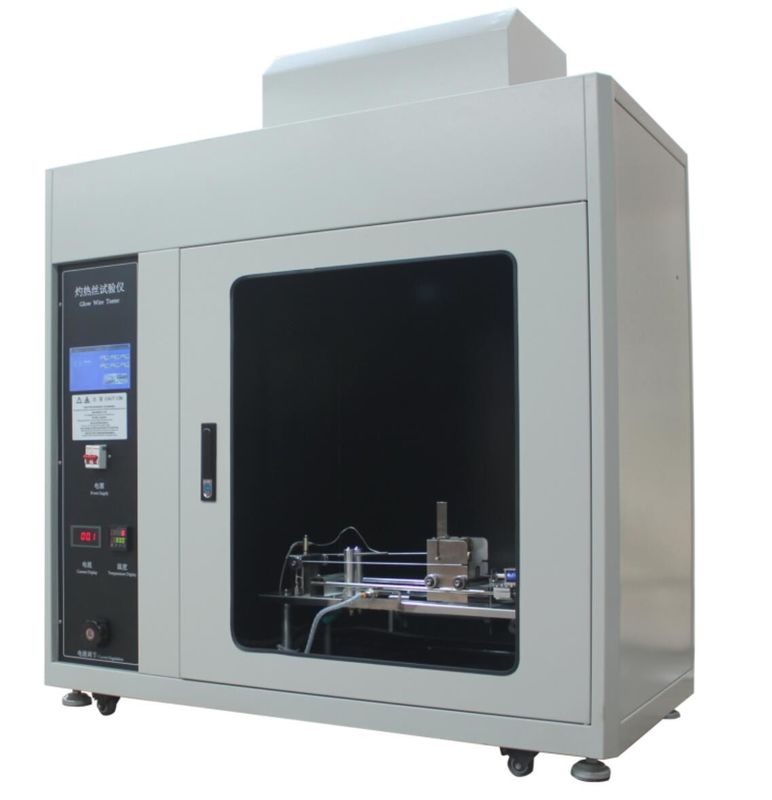

    Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment

    Application
    • The Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.
    • The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.
    • A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

    Technical parameters

    Glow wire diameter4mm±0.04mmNi/Cr(80/20)
    Temperature range 500 ~ 750℃±10℃;750 ~ 960℃±15℃
    Thermocouple diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40~ 1100°C
    Searing Time30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)
    Light-off Time0-999.9 s ± 0.1 s, automatic recording, manual timeout
    Fire out time0-999.9 s ± 0.1 s, automatic recording, manual timeout
    Ironing into depth 7mm ± 0.5 mm
    Sample pressure1N ± 0.2 N
    Test speed18±3mm/s
    Test backgroundblack background
    Test process automatic controlindependent convulsions
    Chamber≥0.5m
    Control Using single chip microcomputer+ touch screen control
    Power Supply AC 220V,50Hz







    Glow-wire

    Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment
    Glow-wire material: Nickel/Chromium (>77 %Ni/20 ± 1 %Cr)
    Diameter: 4,0 mm ± 0,07 mm (before bending)

     A new glow-wire shall be annealed for a total of at least 10 h by being subjected to a current of at least 120 A before being used for a test run. The total annealing time may be achieved cumulatively. To avoid damage, the thermocouple shall not be installed during annealing. At the end of annealing, the depth of the thermocouple pocket hole shall be verified.
    Timer0-30s ±1s
    Force to the test specimen0,95 N ± 0,10 N
    glow-wire into and through the test specimen7 mm ± 0,5 mm.
    Speed10 mm/s to 25 mm/s
    fine-wire thermocouple

    nominal diameter of 1,0 mm. The thermocouple wires shall be suitable for continuous operation at temperatures up to 960 °C (e.g. chromel/alumel (Type K) – see IEC 60584-1). The welded point shall be located inside the sheath as close to the tip as
    practicable. The sheath shall consist of a metal resistant to continuous operation at a temperature of at least 1 050 °C.

    Temperature range500-1000C°
    Chamberhaving a volume of at least 0,5 m3 , dark background, illumination £ 20 lx.
    Initial calibration report:

    Required. And shall include the Temperature vs current chart in the report also
    Electronic Test Equipment IEC60695-5-10 Glow Wire Testing Equipment

    wooden board (x2)flat and smooth and having a minimum thickness of 10 mm


    Standards
    IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1,IEC60335-1,VDE0620
