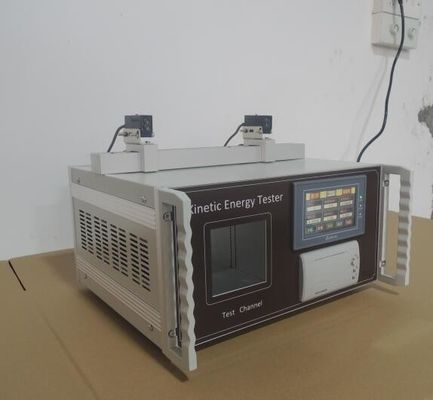

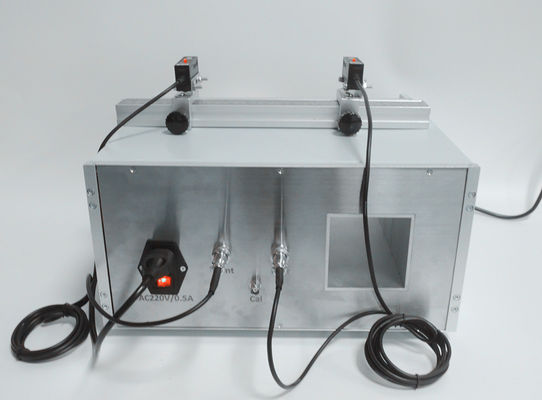

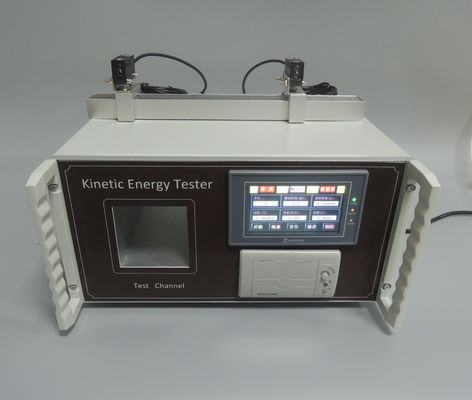

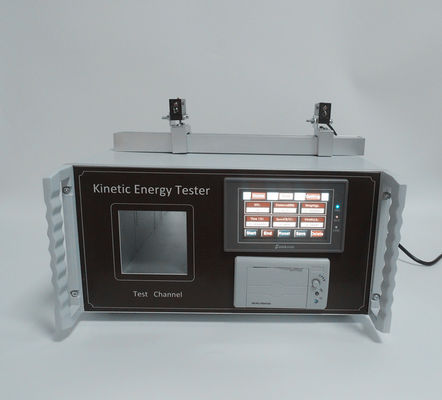

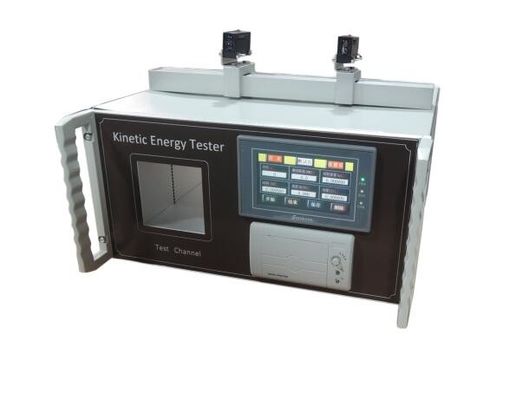

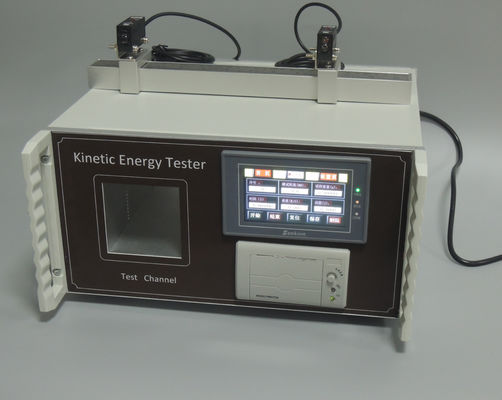

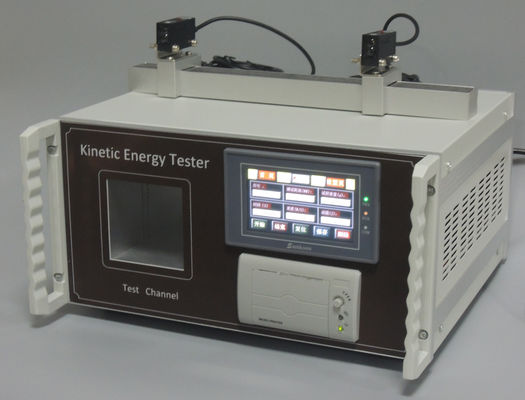

Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer

Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer

    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
    • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer
  • Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 5 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5 pcs / month
    Contact Now
    Detailed Product Description
    Skyline: Touch Screen Kinetic Energy Tester With Printer Maximum Timing: 15.000000S
    Timing Range: 0.000001--15.000000S Speed Display Range: 0.007M/S—10000.000M/S.
    Volume(WxDxH): 36x35x15cm Power Supply: 1∮ AC 220V 3A
    Screen Control: Touch Screen

    Kinetic Energy Tester Toys Testing Equipment

    Use
    This device comes with a printer.

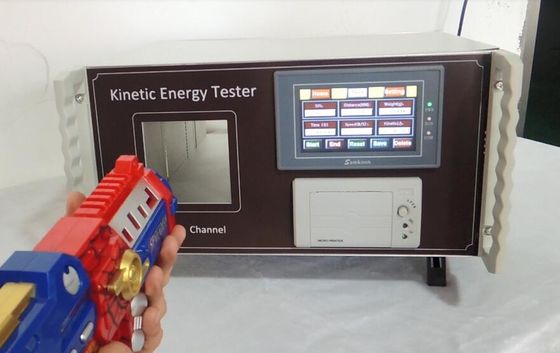

    The instrument is mainly used to test the kinetic energy of the projectile toy, so that the ejection component of the toy passes the test tube of the instrument or the two sensors of the external test component, and the time taken by the toy ejection component to pass a certain distance is measured, and the movement is calculated. energy. Inspect the safety performance of the catapult toy for infants or children.

    Principle
    The sample is injected from the front of the test channel, and the instrument automatically captures the velocity of the object and automatically records the time difference between the front and back positions of the test. Based on the measured time value and the weight of the sample, the kinetic energy value of the sample and its hazard can be calculated.

     Standard
     EN71-1-2011

    Technical parameters

     Number of samples 1/time
     Screen control Touch Screen
     Maximum timing 15.000000S
     Timing range 0.000001--15.000000S
     Speed display range 0.007M/S—10000.000M/S

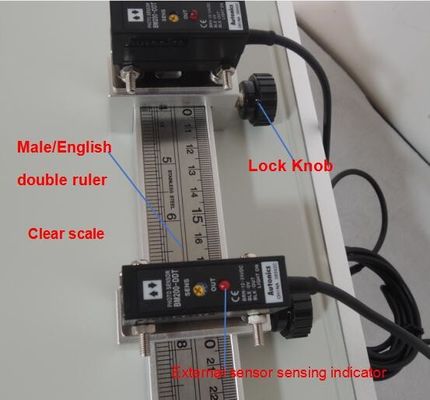

     Front and rear sensing spacing 152.4mm,error0.1mm
     Minimum diameter of sample 3mm
     Test save save data
     Volume(WxDxH) 36x35x15cm
     Weight (approx.) ≈6kg
     Power supply 1∮ AC 220V 3A


    Special Selling point
    1. Touch Screen
    2. With print
    3. The machine will automatically calculate the kinetic energy

    4.Test save, can save data
    5. Calibration function
    6. Price concessions
    7. Independent packaging
    8. In stock, can be shipped immediately

    The packing details is as below :
    Dimension: 41cm*41cm*26cm(L×W×H)
    Weight:8.6kg

    Features
    With the detection capability of bullets above 0.5mm diameter, no sensitivity adjustment is required, and it is fully automated. Enter the weight of the bullet,
    Automatic calculation of bullet velocity, kinetic energy, number of times, average


    Please review video of the  Kinetic Energy Tester operation as below link:
    https://youtu.be/Rv64fly1kNI

    Product analysis

    Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer


    Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer



    Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer

    Calibration
    Calibration procedure,the simulator output signal port is well connected with the instrument signal interface.
    Simulator time input Dial the dial to set the time. Input power connection +5V/1A.
    Need to press in the touch screen
    Start the test button. After everything is installed, press the simulator output switch.

    The result will be Display the touch screen to see if the input time is the same as the displayed result. (+/-0.0001 second error)


    The difference between the two kinetic energy

    Toys Testing Equipment EN71-1-2011 Touch Screen Kinetic Energy Tester With Printer

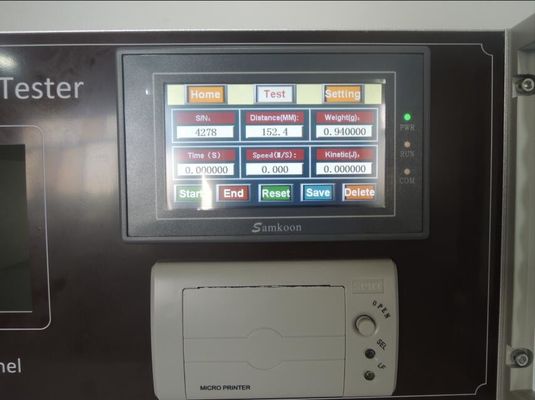

    Touch screen version: Touch screen, upgraded kinetic energy, easy to operate, will record time, speed, Machine automatically calculates kinetic energy, and print and Calibration function.
    Regular version:Ordinary kinetic energy, button version, operation is not so convenient, only the time and speed are recorded on the screen, the kinetic energy needs to be calculated by yourself, there is no printing function.
