|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||plywood case|
|Delivery Time:||15 working days|
|Payment Terms:||Western Union, MoneyGram, T/T|
|Supply Ability:||1 pcs/ month|
|SKYLINE:||Black Test Corner||Test Temperature Point Disposal:||100mm X 100mm|
|Dimension:||600X600X600mm||Thermocouple:||<0.3mm Import K Type|
|Standards:||IEC 600335 IEC 60335-1 / Clause 11 Warming Black Test Corner|
Electrical Temperature Measurement Black Test Corner For Electronic Products
It is used for the measurement of the temperature radiated by different equipment during the tests from heating.
Test corner / room conform to IEC60335-1:2004 can be used to the temperature
test of all kinds of electronic products supply, in conformity with the standards requirement of the environmental conditions.

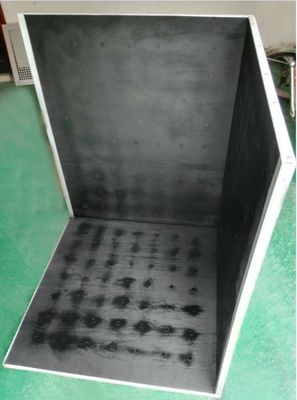

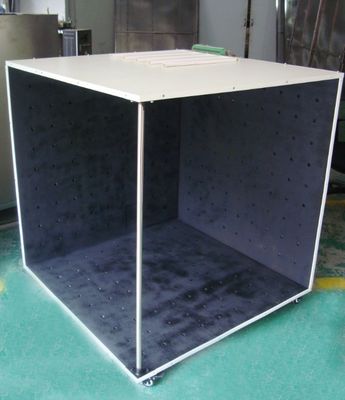

The Black Test Corner is used for the measurement of the temperature radiated by different equipment during the tests from heating and abnormal operation.
One is designed and made with the intention of determining the fulfillment of different norms as far as the registry from temperatures during the operation of the apparatus under test.
|Thermocouple||<0.3mm Import K type|
|Thermocouple disposal||Disposal in a line bank( select and fit out thermocouple plug and socket)|
|Test temperature sheet copper||Diameter15mm, thickness1mm sheet brass|
|Test Temperature point||20point, 32point, 48point(other);|
|Test Temperature point disposal||100mm X 100mm|
|Glued board||Thickness about 20mm, Berlin black in face,Stick the gray sheet glued board in rear|
|Active part||Install 4 pcs active wheels|
