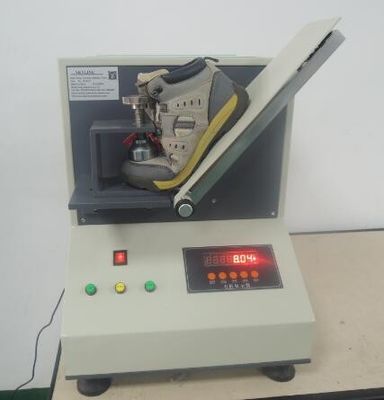

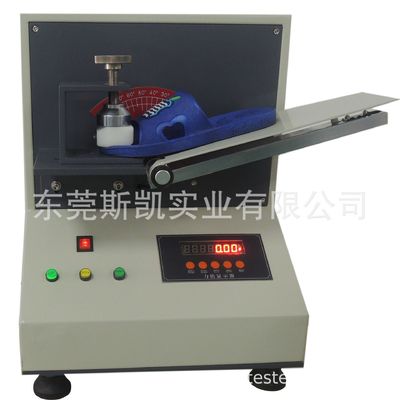

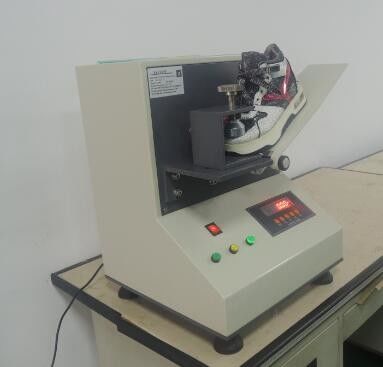

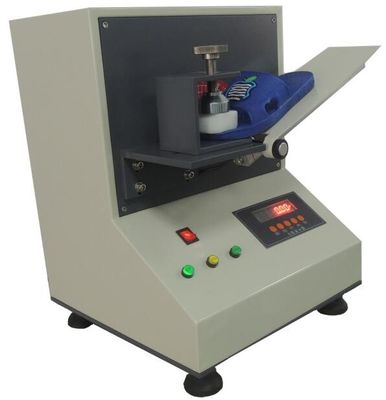

Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min

Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min

    • Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min
    • Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min
    • Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min
    • Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min
  • Footwear Testing Equipment Digital Shoes Rigidity Tester 100±10 Mm / Min

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-L13

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 15 work days
    Payment Terms: Western Union, MoneyGram, T/T
    Contact Now
    Detailed Product Description
    SKYLINE: Digital Footwear Stiffness Tester Standard: SATRA STM 507 ISO EN20344-2010
    Dimension: 67 X 53 X 65cm Speed: (100±10)mm/min
    Weight: 60KG Screen: LED Digital Display

    Footwear Testing Equipment Digital Shoes Rigidity Tester (100±10) Mm / Min

    Product information
    Torsional stiffness is a measure of the resistance to twisting of footwear about its longitudinal axis. The footwear is clamped in the toe area, forces are applied through the heel clamp such that the heel and backpart is twisted first inwards and then outwards up to a maximum angle. The torque required to achieve the twist is used to calculate the torsional stiffness values.

    Application
    It is the tester used to test stiffness of the outsole.fix the toe part of finished shoe with a solid body by the fixture and increase the force under requested speed ,inspect the bendng angle of the outsole ,then decide if it is necessary to do Bending Test according to the angie.

    Technical parameter
     Speed  (100±10)mm/min
     Load  30kg
     Screen  LED digital display
     Power  AC220V
     Dimension(W×D×H)  67*53*65cm
     Weight  60kg



    Operation procedure

    1.Turn on the power, press the "Down" button, let the moving board back to 0-bit.

    2. Install the sample (shoe or shoe sole), and place the zigzag line of the sample on the rotating shaft to compress the toe cap;

    3. Press the “clear” button on the display to display 0.00 kg on the display.

    4. Press the "Up" button, the table to the specified speed (100±10mm/min) gradually increase the force to 3kg or the active plate bends to 90°, the instrument will automatically stop. At this point, we can look at the angle of the pointer readings, according to which we decide whether it is to do the folding test;

    5. When we measure the rigid angle of the shoe, press the "Down" button again to return the movable panel to zero (level). Repeat the above steps for a sample test;

    6. After testing, please turn off the power.



    Attention matters

    1. The instrument must be reliable grounding

    2. Regularly in the activities of the instrument to add embellish oil to protect the flexibility of the use of equipment

    3. The instrument must be used by special personnel

    4. External power supply: AC220v.

    5. Power: 100W



    Standard

    Comply with ISO EN20344-2010 and other standards.
