Home ProductsFootwear Testing Equipment

Outsole Belt Flexing Tester is Designed for Flexing Outsoles

Outsole Belt Flexing Tester is Designed for Flexing Outsoles

Outsole Belt Flexing Tester is Designed for Flexing Outsoles

Product Details:

Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L25

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Outsole Belt Flexing Tester Belt Size: Length: 1930±50mm Width: 140±5mm
Rotating Speed Of Sack: 90±8 Cycles/min Sampling: MAX.6 Pcs
Counter: LCD 0~999,999 Dimension (W×D×H): 131 Cm ×82cm ×69cm
Weight (Approx): 170kg Power: AC220V 50Hz/60Hz (specified By User)

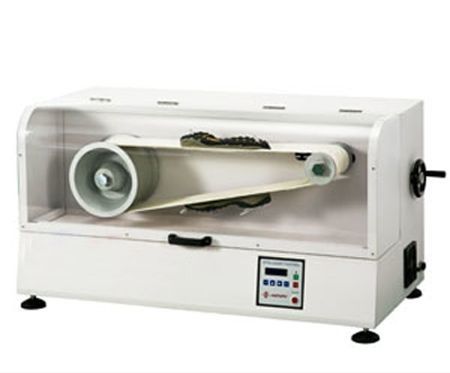

Outsole Belt Flexing Tester



Product information

This machine is designed for flexing outsoles. It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.



Technical parameters

 Belt Size  Length: 1930±50mm Width: 140±5mm
 Rotating Speed of Sack  90±8 cycles/min
 Sampling  MAX.6 pcs
 Counter  LCD 0~999,999
 Motor AC  1/2HP variable freq. motor
 Dimension (W×D×H)  131 cm ×82cm ×69cm
 Weight (Approx)  170kg
 Power  AC220V 50Hz/60Hz (specified by user)
