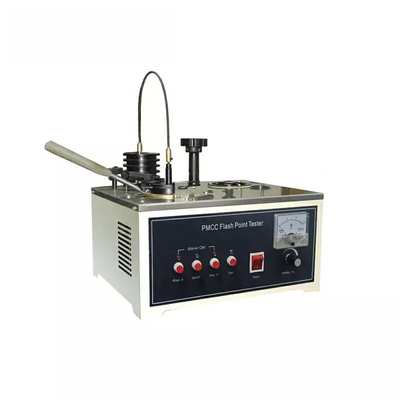

ASTM D93 Flash Point Oil Analysis Equipment Pensky Martens Closed Cup Flash Point Tester

ASTM D93 Flash Point Oil Analysis Equipment Pensky Martens Closed Cup Flash Point Tester

ASTM D93 Flash Point Oil Analysis Equipment Pensky Martens Closed Cup Flash Point Tester

Product Details:

Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-ASTM D93

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
SKYLINE: Closed Cup Flash Point Tester Standard: ASTM D93.
Oil Cup Inner Diameter: 50.7mm~50.8mm. Oil Cup Depth: 55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil: 33.9mm~34.3mm. Capacity Of Testing Oil:: About 70ml
Thermometers: Scale 20°C~150°C, Division 1°C.

ASTM D93 Flash Point Oil Analysis Equipment Pensky-Martens Closed Cup Flash Point Tester



Description

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.



Features

1. This instrument is designed as per ASTM D93.

2. The heating power is continuously and sleeplessly adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.



Specifications

1. Power supply:AC (220±10%)V, 50Hz.

2. Heating device: The heating power is continuously adjustable from 0 W to 600W.

3. Heating rate ::(1~12)°C/incontrollable and adjustable.



Stirring rate

(1) Procedure A: (90~120) RPM

(2) Procedure B: (250±10) RPM



Standard oil cup

(1) Inner diameter: 50.7mm~50.8mm.

(2) Depth: 55.7mm~56.0mm

(3) The scribed line depth of capacity of testing oil: 33.9mm~34.3mm.

(4) Capacity of testing oil: about 70ml



Igniting device

(1) Igniting source: gas(or other civilian fuels, the same below)

(2) Electric ignition. Gas flame diameter: 3.2mm~4.8mm



Thermometers: Mercury-in-glass thermometer. Specifications are as below:

(1)Scale -5°C~110°C, division 0.5°C.

(2)Scale 20°C~150°C, division 1°C.

(3)Scale 90°C~370°C, division 2°C.



8. Ambient temperature:≤ 35°C



9. Relative humidity:≤ 85%



10. Maximum power consumption:650W
