Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure

Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure

    • Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure
    • Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure
  • Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-T801

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 7 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Desktop Tensile Strength Tester Maximum Load: 1KN High-precision Sensors From U.S.A.
    Capacity Choice: 200N, 500N, 1KN,200kg Or Less Than Can Be Self-selected Units: Kg, Lb, N
    Resolution: 1 / 50000 Power Systems: Servo Motor

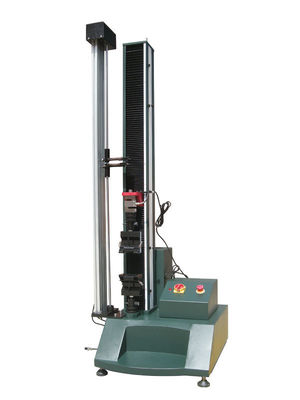

    Desktop Tensile Strength Tester With a Simple Type Machine, Simple Structure


    Product Information
    Desktop Servo Tensile Strength Tester is a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the servo control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.



    Main functions
    This machine can test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.


    Technical parameters

     Maximum Load  1KN high-precision sensors from U.S.A
     Capacity choice  200N, 500N, 1KN,200kg or less than can be self-selected
     Units  Kg, lb, N
     Measured System  Load cell + HZ-2000
     Accuracy of load measurement  the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
     Resolution  1 / 50000
     Power Systems  Servo Motor
     Power  120W
     Dimension  450 × 550 × 1400mm
     Weight  70kg
     Power  220V, 15A





    Desktop Tensile Strength Tester Lab Testing Equipment With Simple Type Structure
