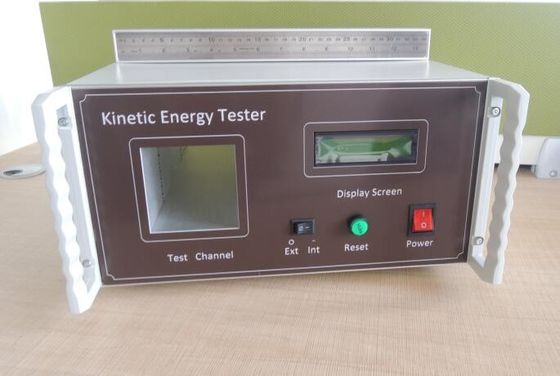

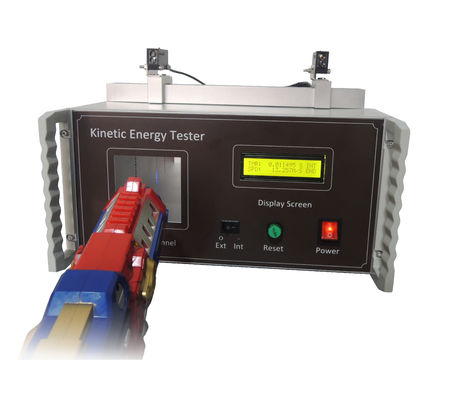

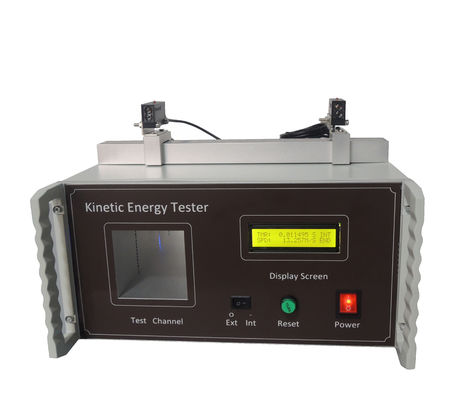

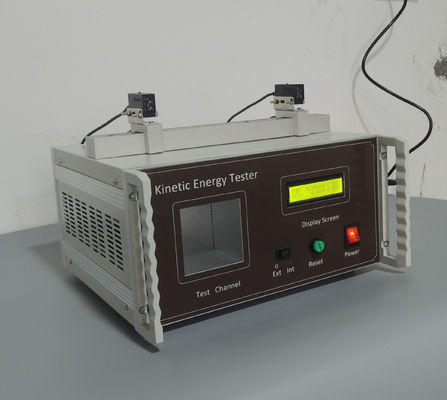

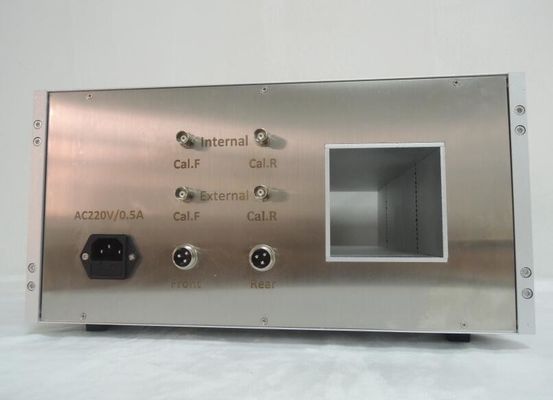

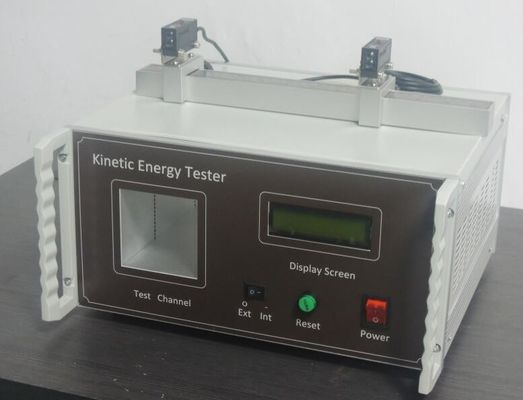

ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable

ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable

    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
    • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable
  • ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 5 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5 pcs / month
    Contact Now
    Detailed Product Description
    SKYLINE: Kinetic Energy Tester Power Supply: AC 220V/5W/50HZ
    Speedometer Time: 1uS-15.000000S Internal Testing Channel Size: Internal Testing Channel Size
    Sensors Distance: 152.4mm Standards: ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8
    Sample Test Range: 0.001g~1000,000.000g Channel Input: Inner/outer Channel
    High Light:

    abrasion testing equipment

    ,

    physical testing equipment

    ISO 8124-1 Toys Test Equipment Toy Kinetic Energy Tester



    Product information

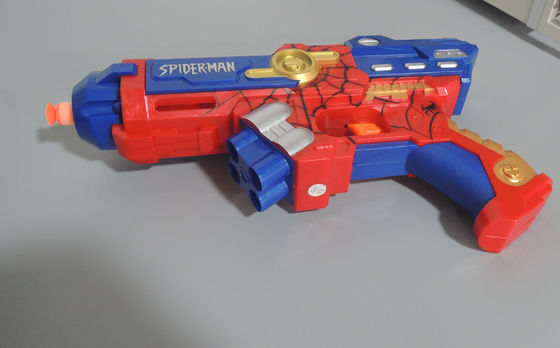

    The Kinetic Energy Tester is suitable for kinetic energy testing of projectiles, energy storage ejection toys, and non-energy storage ejection toys, such as toy guns and crossbows.

    Principle: Let the ejection part of the toy pass the test tube of the instrument or pass through the two sensors of the external test part, measure the time it takes the toy ejection part to pass a certain distance, and calculate its kinetic energy
    Features: It has the ability to detect bullets with a diameter of more than 0.5MM, without the need for sensitivity adjustment, fully automatic operation to enter the weight of the bullet, and automatically calculate the bullet speed, kinetic energy, frequency, and average.



    Main parameters

     Power supply  AC 220V/5W/50HZ
     Sample test range  0.001g~1000,000.000g
     Response time  10uS.
     Speedometer time  1uS-15.000000S
     Projectile size

     maximum 50mm diameter

    Minimum 2mm diameter

     Internal testing channel size  76mmx76mm
     Sensors distance  152.4mm( internal sensor )
     Adjustable  40mm - 400mm ( external sensor)
     Direct-reading  Induction time, Test speed, Test power
     Dimensions  350 x 420 x 210mm (L x W x H)
     Weight  19kg
     Standards

     ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8



    Special Selling point

    1. Independent packaging

    2. Price concessions

    3. In stock, can be shipped immediately



    Please review video of the Kinetice Energy Tester operation as below link:

    https://youtu.be/u62spdho6uw



    ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable 0





    ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable 1



    ISO 8124-1 Lab Testing Equipment Kinetic Energy Tester With 40mm - 400mm External Sensor Adjustable 2
