ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed

ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed

    • ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed
    • ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed
  • ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-T14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: USD
    Packaging Details: carton case
    Delivery Time: 5-8 work days
    Payment Terms: Western Union, MoneyGram, L/C, T/T
    Supply Ability: 10 UNIT/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Brookfield Viscometer Viscosity Test Apparatus STANDARD: ASTM D4402
    Speed: 0.3 ~ 200rpm Measurement Range: 100 MPa•s~2×105 MPa•s

    ASTM D4402 Digital Portable Adhesion Tester Apparatus With 0.3 ~ 200 Rpm Speed



    Product information

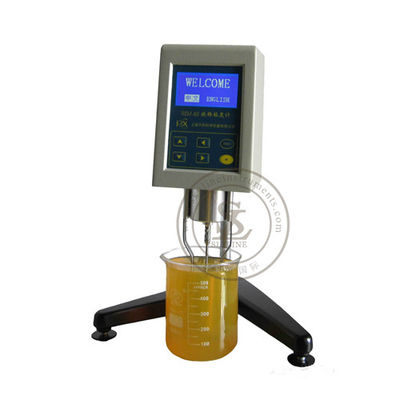

    The brookfield viscometer is designed and made as per T 0625-2011 “Asphalt Brookfield Rotational Viscosity Test (Brookfield Viscometer Method)” in the Industry Standard of People’s Republic of China JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It can be widely used to determine viscosity of asphalt, hot melt adhesive, paraffin, high polymer, and various fluids.



    Detailed parameter

    Sheen new digital adhesion meter fast, effective and accurate measurement of viscosity, provides an ideal solution, it is easy to use, wide application, can be used for detection of various liquids. Measurement of torque, rotational speed can be displayed, rotor model, and the results calculated viscosity.



    Characteristic
    1. Speed from 0.3 ~ 200rpm
    2. LCD screen can be clearly shown from the choice of operating parameters
    3. Installation of new equipment slowed the rate improved to prevent dramatic changes in the rotor torque with platinum
    4. Platinum probe can measure temperature.
    5. Interface options / software records
    6. Input density can test the kinematic viscosity range
    7. Automatically display range
    8. Can store 10 user-defined test set
    9. 8 languages selectable
    When the reading in the full scale and below 15% will alarm

     Measurement range  100 mPa•s~2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s)
     Rotor Specifications  No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional)
     Rotor speed  (5,10,20,50)r/min
     Measurement error  ±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)
     Temperature control range  45 ℃~200 ℃
     Temperature control accuracy  ±0.1 ℃
     Sample cylinder  20ml
     Print output  Needle printer
     Communication with the PC  RS232 interface
     Power supply  AC 220V±10%, 50 Hz
     Ambient temperature  5 ℃~35 ℃ (when the controlling temperature is close to ambient temperature, please run the air conditioner to let the ambient temperature be 5 ℃ lower than the controlling temperature)
     Relative humidity  ≤80%
