IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment

China IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier
IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment supplier

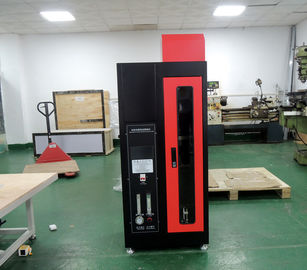

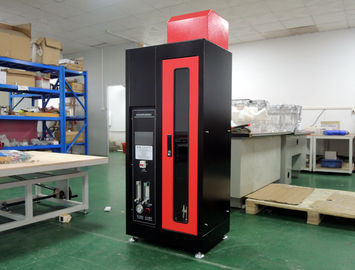

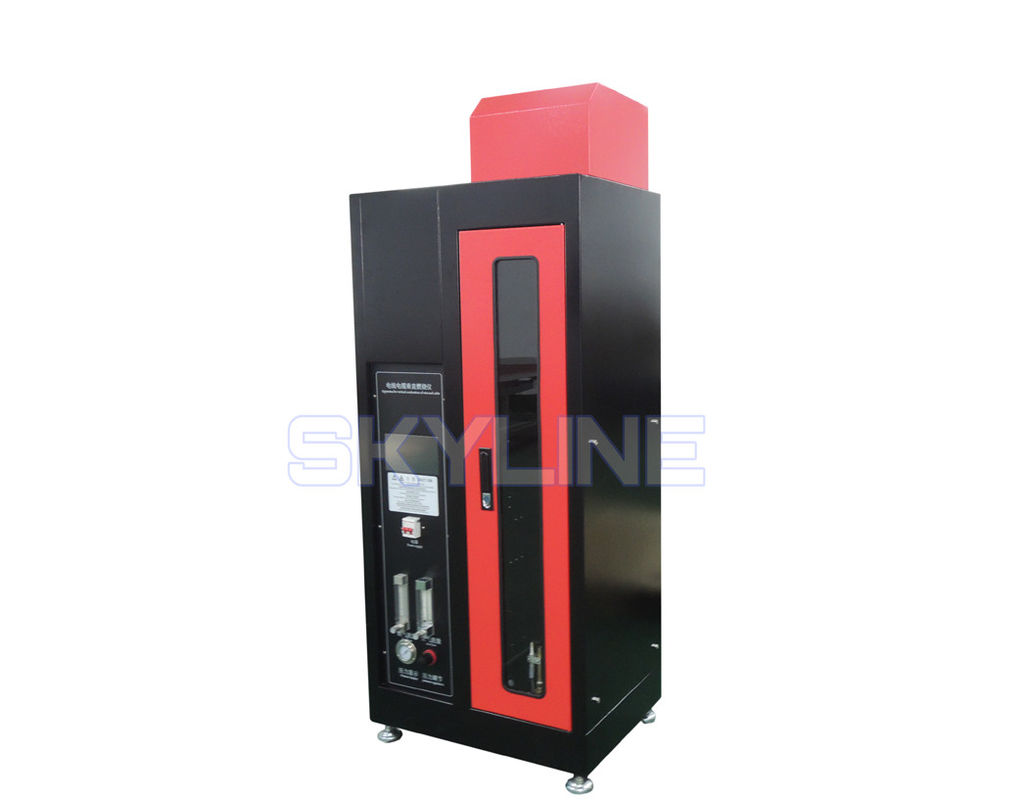

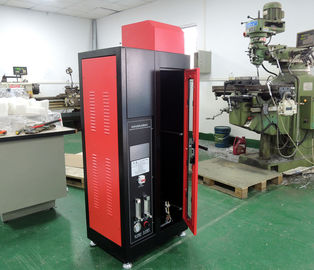

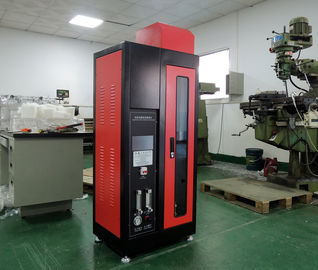

Large Image :  IEC 60332-1-1 1 KW Single Insulated Wire and Cable Vertical Flame Test Equipment

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7603C

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Wire/ Cables: Vertical Flammability Tester Vertical Burning Chamber: 60x45x156cm
Length Of Specimen: 600±25mm Burner: Inner Diameter: Φ9.5mm ± 0.5mm
Flame Height: 20mm ± 2mm To 190mm ± 1mm Adjustable Burning Torch Standard Power: 1KW

Single Insulated WIre and Cable Vertical Flame Test Equipment , Specimen Length 600 ± 25mm



Description of the instrument

IEC 60332 Single Insulated Wire or Cable Vertical Flammability Tester is used for conductor diameter greater than 8mm (cross-sectional area greater than 0.5mm2) or less than 8mm (cross-sectional area less than 0.5mm2) of the single wire and cable flammability assessment. It is suitable for the research, production and quality inspection departments of electrical and electronic products and components such as lighting equipment, low voltage electrical appliances, household appliances, machine tools, electrical appliances, electric tools, electronic instruments, electrical instruments, electrical connectors and accessories. In line with IEC 60332.



Application

Tests on electric and optical fiber cables under fire conditions—Part 1-2: Test for vertical flame propagation for a single insulated wire or cable—Procedure for 1 KW pre-mixed flame



Specifications

Outside diameter of wire and cable tested: conductor diameter greater than 0.8mm or cross-sectional area greater than 0.5mm2

 The device should be placed in an unventilated and temperature (23±10)°C environment

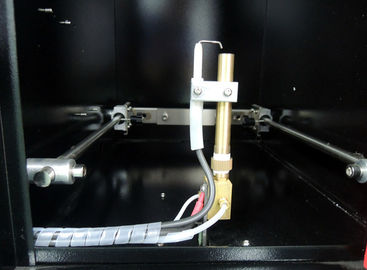

 Burner  Inner diameter Φ9.5mm ± 0.5mm
 Test inclination angle  45° style beam can move back and forth, adjust the position of the Bunsen burner according to the Specimen thickness;
 Flame height  20mm ± 2mm to 190mm ± 1mm adjustable
 Flame time  0-999.9s ± 0.1s adjustable
 Combustion gas  95% propane gas (usually replaced by liquefied petroleum gas)
 Gas  high-purity propane gas or liquefied petroleum gas (user-supplied)
 The length of the tested wire and cable  600±25mm
 Burning torch standard power  1KW
 Supply voltage  220V/50Hz
 Gas flow  0-1L/min
 Air flow  1.5-15L/min
 Box material  steel electrostatic spraying
 Dimensions  length 60 cm wide 45 cm high 156 cm



Test Standards

IEC60332  MT818 MT386 ISO5656
