Home ProductsEnvironmental Test Chamber

Environmental Test Chamber Sand And Dust Test Chamber Digital Temperature Display

Environmental Test Chamber Sand And Dust Test Chamber Digital Temperature Display

    • Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display
    • Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display
    • Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display
    • Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display
  • Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-IP56X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Plywood case
    Delivery Time: 10 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    Stainless Steel: Coated Printed View Windown: Glass Two View Windows With Lights
    Tray: 2 Pcs Stainless Steel Trays Temperature: RT-250C
    Temperature Display: Digital Temperature Display Standard: IP56X-125L

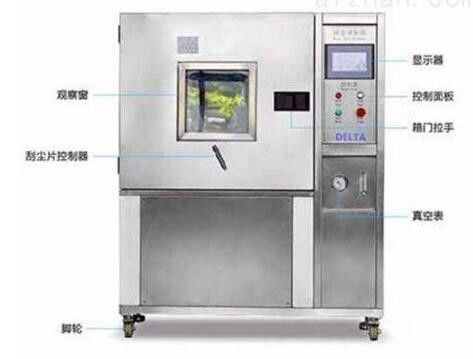

    SL-IPX5X6 Sand And Dust Test Chamber



    Main application

    The sand and dust test chamber is used to test the sealing performance of the product shells. It is mainly used for the test of two grades of IP5X and IPX6X for enclosure protection grade. Through the simulation of sand and dust weather, outdoor lamps, auto parts, outdoor cabinets, power meters and other product are tested.



    Main Technical Parameters

     Model  Inner dimension  Outer dimension  Power
     SL-IP56X-125L  500×500×500mm  950×750×1500mm  1.0KW
     SL-IP56X-500L  800×800×800mm  1250×1020×1770mm  1.5KW
     SL-IP56X-1000L  1000×1000×1000mm  1450×1220×1970mm  1.5KW
     SL-IP56X-1500L  1000×1500×1000mm  1450×1720×1970mm  2.0KW
     Time setting range  0-999 Adjustable
     Temperature setting range  RT+10~70℃ (Please declare in order)
     Test dust   French chalk
     Dust dosage  2-4Kg/m³
     Dust fall mode  Dusting in freedom
     Vacuum degree  0-10.0Kpa Adjustable
     Protector  Leakage protection and short circuit protection
     Supply voltage  220V



    Notes:other sizes can be customized according to requirements.

    Environmental Test Chamber Sand And Dust Test Chamber  Digital Temperature DisplayEnvironmental Test Chamber Sand And Dust Test Chamber  Digital Temperature Display
