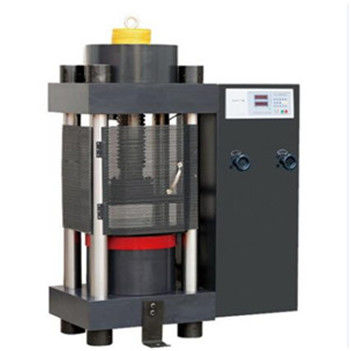

Lab Compression Testing Equipment with Digital display 2000KN 2KW

Lab Compression Testing Equipment with Digital display 2000KN 2KW

    • Lab Compression Testing Equipment with Digital display 2000KN 2KW
    • Lab Compression Testing Equipment with Digital display 2000KN 2KW
    • Lab Compression Testing Equipment with Digital display 2000KN 2KW
  • Lab Compression Testing Equipment with Digital display 2000KN 2KW

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: calibration certificate
    Model Number: SL-2000C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: Plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram, L/C
    Supply Ability: 2 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Digital Display Compression-Testing Machine Maximum Test Force: 2000KN
    Test Force Measurement Range: 10%-100% Piston Stroke: 80mm
    Motor Power: 2KW Total Weight: 800KG

    Lab Compression Testing Equipment with Digital display 2000KN 2KW



    1. Brief introduction:



    This machine adopts the structure of the host and the hydraulic system, which is compact and exquisite. The motor is used to drive the lead screw to adjust the compression space, hydraulic loading and electronic force measurement. It has the functions of loading rate display, peak holding and other functions, and is equipped with a mini printer.



    2. Hydraulic system:



    The hydraulic oil in the tank goes through the motor to drive the high pressure pump into the oil road, and flows back to the oil valve and enters the oil cylinder. The measuring instrument collects the analysis data through the sensor, shows the time force value, and the tester controls the flow through the oil delivery valve to realize the speed of the test force speed.

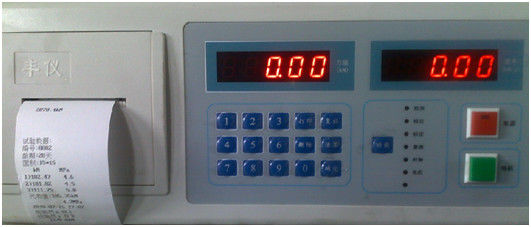

    3. namometric system:



    a.Nual adjustment and return to oil valve, simple and flexible operation.

    b.Ximum load peak retention function.

    c.Namic display function with loading rate.

    d.Ndom test report with date of tast, number, failure load, compressive strength, etc.



    4. Safety protection device:



    When the test force is more than 3% of the maximum test force, the overload protection and the pump motor stop.



    5. in performance technical indicators:



     Maximum test force (kN)  2000
     Test force measurement range  10%-100%
     The relative error of the test force indication value  Less than 1% of the indication value
     Upper and lower plate spacing (mm)  300
     Piston stroke (mm)  80
     Column spacing (mm)  260
     Pressure plate size (mm)  260*300
     Mainframe size (mm)  850*850*1450
     Motor power (kW)  2
     Total weight (kg)  800





    6. ctory standard configuration list:



     Test machine  1 units (including motor, oil pump, return oil valve)
     Dynamometer  1, on the host, containing a micro printer
     Rduction box  1,on the host
     Pressure sensor  1, avionics test
     Up and down platen  1 sets
     Instruction certificate / packing list

     1 sets



    Lab Compression Testing Equipment with Digital display 2000KN 2KW
