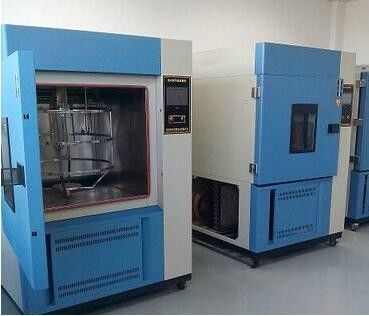

Programmable Water Cooled UV Xenon Arc Weather Testing Chamber 280 - 800nm Wavelength

Programmable Water Cooled UV Xenon Arc Weather Testing Chamber 280 - 800nm Wavelength

    • Programmable Water Cooled UV Xenon Arc Weather Testing Chamber  280 - 800nm Wavelength
    • Programmable Water Cooled UV Xenon Arc Weather Testing Chamber  280 - 800nm Wavelength
  • Programmable Water Cooled UV Xenon Arc Weather Testing Chamber  280 - 800nm Wavelength

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: UV Xenon Arc Weathering Test Chamber Xenon Lamp: 6KW
    Inner Dimension: 800x800x800 Humid. Range: 65%— 98% R. H
    Temp. Range: RT-85º C Wind Speed: 1~1.5m/s
    Wavelength: 300-400nm,280-800nm, 340nm

    Programmable Water Cooled UV Xenon Arc Weather Testing Chamber 280 - 800nm Wavelength



    Product introduction

    This equipment uses xenon arc lamp that can simulate the whole spectrum of sunlight reproduction under different environments the destructive wave,which can provide the corresponding simulation environment and accelerated test for scientific research, product development and quality control.Aging test of xenon arc lamp under light and heat radiation by exposing material samples. To evaluate the light and weather resistance of some materials under the action of high temperature light sources. It is mainly used in automobiles, coatings, rubber, plastics, pigments, adhesives, fabrics and so on.



    Detailed specification parameters

     Product mix  Sigal box vertical







     Technical parameters of xenon lamp

    Temperature rang RT℃~+80℃ Light irradiance
    Spectral wavelengths: 290nm~800nm Irradiance range: 550W~1200W/㎡
    Temperature fluctuation ≤±0.5℃
    Temperature uniformity ≤2℃
    cooling rate 0.7~1℃/min(Nonlinearity)
    Heating rate 3~5℃/min(Nonlinearity)
    Humidity rang 30%~98%R.H
    Humidity fluctuation

    3%~4%R.H



    Blackboard temperature 63+3℃







     Test standards for satisfaction

    SAEJ-1885 ;SAEJ-1996

    ISO 105B-06 ;ISO 105B-02 ;ISO 105B-04

    ISO4892-2 ;ISO11341

    AATCC16E ;AATCC169(1)

    JASOM346-93

    GMW3414TM Ford Interior

    ASTM G155-1 ASTM G155-4



     Implementation and compliance with standard instructions

    1.ISO 4892-2:2006

    2.ISO 11507

    3.ASTM G154





     Texture of material

    Material and size of outer box

    High quality cold rolled steel plate lacquer

    Deep:1400 wide:1450 high:1950mm

    Material and size of inner box

    Imported SUS304 stainless steel

    deep :800 wide: 800 high :800mm

    Insulation material High quality polyamine foamed 100mm



     Xenon Lamp House

    Water cooled xenon lamp 6kw, More than 1200 hours of life, easy to disassemble
     Light irradiance deviation ±0.01W/m2
     High radiation intensity control   It can reach 2 sun or higher levels
     Comparison of the spectrum of xenon lamp artificial climate test box light with the sun







     Sprinkler and water source

    1, water pressure: 138 ~ 344Kpa (20 ~ 50psi); flow: minimum 0.6L/min.

    2, xenon lamp cooling, spray, humidification water use water: required to reach the national analytical laboratory two level water quality, water solid impurity content less than 1mg/L.

    3. The sewerage of the test box is located at the left rear of the bottom of the box.

    4. The temperature of the environment is 23±2℃, and the relative humidity is less than 80%. It should not be installed and used in the corrosive, toxic and harmful environment.



     Heating system

    heater Stainless steel ,316L fins, heat dissipating tube electric heater, Control mode: PID control mode, using non contactless periodic pulse width modulation SSR (solid state relay)





















     Controller

    Essential information TEMI-990 Truecolor touch programmable temperature and humidity controller
    The program controls 30 sets of 100 segments (the number of segments can be arbitrarily adjusted to each group)
    R232 communication interface
    Operation mode Fixed value / program
    Setting method Manual input
    Set range Temperature: -199℃~+200℃
    Humidity: 0% to 100%
    Time:0~9999 hours / minutes / seconds
    Resolving power Temperature: 0.01℃
    Humidity: 0.01%
    Time:0.1s
    Input PT100 platinum resistance
    Ancillary function Alarm display function (prompting the cause of failure)
    Upper and lower limit temperature alarm function
    Timing function, self diagnostic function
    Measurement data acquisition PT100 platinum resistance







     Component configuration

    refrigeration system Compressor French original "Tai Kang" full closed compressor unit
    Refrigeration mode Single stage refrigeration
    Refrigerant Environment-friendly R-404A
    Filter
    Condenser Taiwan middle force
    Evaporator
    expansion valve Danish original "Danfoss"
      Air supply circulation system The forced circulation of air by a stainless steel fan
    Chinese foreign joint venture "constant profit" differential motor
    Multi wing wind turbine
    Air supply system as a single cycle
    Window light Philips
    Other configuration Stainless steel movable sample frame can be moved 1 layers
    Hollow conductive thermal defrosting functional glass observation window and light lamp
    Universal moving wheel angle



     Safeguard

    Xenon lamp cooling water shortage protection
    Low (high) alarm of xenon lamp irradiance
    Door safety protection
     Production standards GB/2423.1 ;GB/2423.2;GB/2423.3,GB/2423.4











     Conditions of use

    Power

    A380V;

    Allowable range of voltage fluctuation: AC380V ± 10%

    Frequency allowable fluctuation range: 50Hz ±0.5 Hz

    Protection ground wire grounding resistance less than 4 omega; TN-S mode power supply or TT mode power supply

    Use of the environment

    Temperature: 5℃~35℃

    relative humidity: ≤85%RH

    Space

    The ground is smooth and well ventilated, without inflammable, explosive and corrosive gases and dust

    There is no strong electromagnetic radiation source nearby

    There is a proper maintenance space around the equipment



    Features

    1.Presetting various specifications, Custom program capability, meet diverse range of standards, including AATCC, ISO, BS, JIS etc.

    2.Automatic compensating system (PATENT) control the Xenon Lamp Power.

    3.Colorful touch screen, indicate the condition of chamber at real-time, be able to presetting irradiance, temperature (BPT, BST, chamber), humidity, and plot dynamic curve of them. The operator simply selects the required test module and test standards; English user interface, diagram indicate condition of chamber, easy to use.

    4.PLC control, powerful program and storage property, save the parameters when interrupt of power supply.

    5.Chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration.

    6.Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless adjustable.

    7.Sample holder/ rack:360 degree rotating, can hold samples of different sizes.

    8.Xenon Arc Lamp to simulate the best full spectrum sunlight.



    Programmable Water Cooled UV Xenon Arc Weather Testing Chamber  280 - 800nm Wavelength
