ISO 11925-2:2002 Building Material Flammability Testing Equipment Ignitability Tester

ISO 11925-2:2002 Building Material Flammability Testing Equipment Ignitability Tester

  • ISO 11925-2:2002 Building Material Flammability Testing Equipment Ignitability Tester
  • ISO 11925-2:2002 Building Material Flammability Testing Equipment Ignitability Tester
ISO 11925-2:2002 Building Material Flammability Testing Equipment Ignitability Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL100
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Flammability Testing Equipment Ignitability Tester Standards: ISO 11925-2:2002
Application: Building Materials Box Size: 835 X Depth 400 X High 815mm
Materail: 1.5mm Stainless Steel Touch Panel: 7 Inch Effective Display, Size 15.5cm Wide 8.6cm
Observing Window: Two Big Viewing Windows On The Front And Right Side Resolution: 800*480
High Light:

abrasion testing equipment

,

physical testing equipment

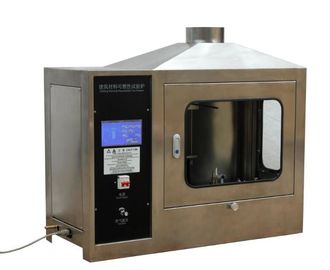

Building Material Flammability Test Furnace with Touch Screen Control



Product Description

Touch screen control building material flammability test furnace uses a stainless steel box. On the basis of old products, it is a newly upgraded product with touch-screen control, controllable sample automatic lifting and Bunsen lamp adjusting and adjusting function. It is a highly configured building material combustion grade tester based on national standard ISO 11925-2:2002.



Standards

ISO 11925-2:2002



Specifications

①Ambient temperature: 15 to 25 degrees centigrade

②Relative humidity: ≤85%

③Service voltage:220V 50HZ 100W

④Air supply: commercial propane with a purity of more than 95%, and ordinary tests can also be replaced by liquefied petroleum gas (the source of transport safety needs to be prepared by the user)



Product Features

The sample frame can move up and down and around.

Equipped with two kinds of sample clips

Flame surveying rod

High degree of automation,accurate and easy operation of experimental data

Box size: 835 x depth 400 x high 815mm

Material: 1.5mm stainless steel

The bottom of the box is a flat natural vent, and the air vent is made up of a 5cm*5cm square vent (real 1.5mm thick steel plate vent, high 50mm) to keep the air flow through.

Meticulous workmanship, real no solder joint process

Touch panel:

  1. Size: 7 inch effective display, size 15.5cm wide 8.6cm
  2. Resolution: 800*480
  3. Communication interface RS232, 3.3V CMOS or TTL, serial port mode
  4. Storage capacity: 1G
  5. Use pure hardware FPGA drive display, "zero" start time, power up can run
  6. With M3+FPGA architecture, M3 is responsible for instruction parsing, FPGA focuses on TFT display, both speed and reliability lead the same scheme
  7. The main controller uses low energy processor to automatically enter the energy saving mode
