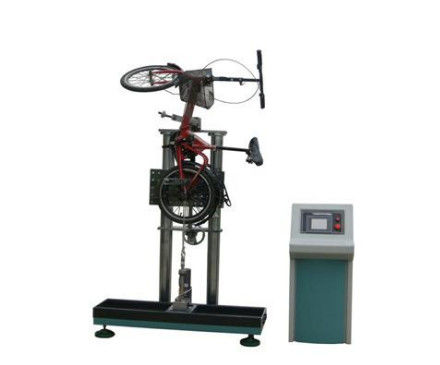

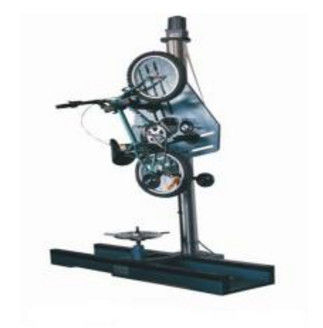

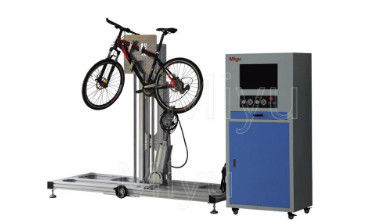

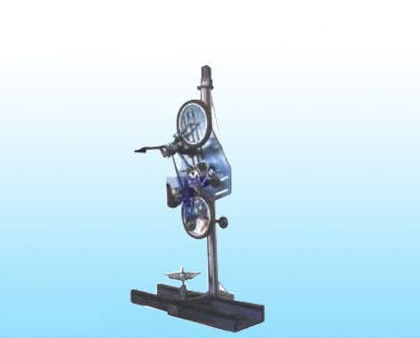

BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine

BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine

  • BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine
  • BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine
  • BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine
  • BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine
BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Wheel Clamping Force Detachment Tester Test Principle: BS ISO8098, EN14765
Load Capacity: 500kgf Timer: 0~60S Adjustable
Time Accuracy: ±0.1s Loading Method: Electric Loading
High Light:

physical testing equipment

,

brake testing equipment

Wheel Clamping Force Detachment Tester



Product introduction

Fasten the wheel with the nut on the frame and the front fork. When testing the front wheel clamping force, apply a 500N force symmetrically on both sides of the front axle along the front wheel disassembly direction for 30s. Check the front axle and front fork. There is no relative displacement between them. When testing the rear wheel clamping force, along the disassembly direction of the rear wheel, a 1000N force is applied symmetrically on both sides of the rear axle for 30s, and there is no relative displacement between the rear axle and the frame.



Technical parameter

 Test principle  BS ISO8098, EN14765
 Load capacity  500kgf
 Timer  0~60S adjustable
 Time accuracy  ±0.1s
 Loading method  electric loading
 Control system  PLC+ touch human-machine interface control
 Dimensions (WxDxH)  Host 2000×850×2000
 Weight (approx)  120kg
 Power supply  1∮, AC220V, 15A (or specified by country)



Experiment method

1. Fix the front wheel of the bicycle according to the standard;

2. Turn on the power, set the force value on the power display, and set the force time on the timer;

It has been set for 30 seconds at the factory.

3. Press the execute key to execute the test. The machine automatically applies force to the test piece. When the set value is reached, the timer starts to count. When the set time is reached, the machine automatically stops applying force.

4. After the test is completed, remove the test piece and check whether there is relative displacement between the shaft and the front fork to judge whether it is qualified.

5. Install the bicycle rear wheel according to the standard, repeat steps 2, 3, and 4 to do the rear wheel clamping force test.



BS ISO8098 EN14765 Wheel Clamping Force Detachment Tester / Bicycle Testing Machine 0
