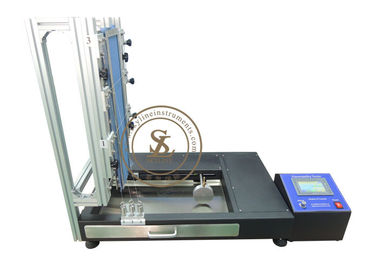

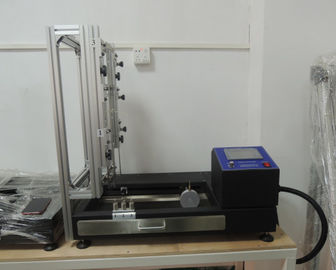

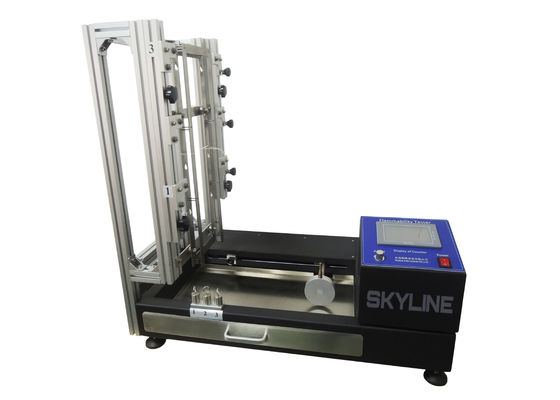

ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material

ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material

    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
    • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
  • ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-S18T-I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: plywood case
    Delivery Time: 10 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 2 pcs/ month
    Contact Now
    Detailed Product Description
    Skyline: ISO6940 Fabrics Vertical Flammability Testing Equipment Flame Height: 20 Mm / 40 Mm
    Burning Gas: Butane Specimen Size: 560mmx170mm
    Fire Mouth Angle: 0 ° / 30 °, 90 ° Standard: ISO 6940/6941, BS EN1103/14878, ISO 15025:2002, DIN 54335/54336/66080. BS 5438/5722/5866/5867/6249/6341

    ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material



    Application:



    Vertical Flammability Tester , to determine the flammability resistance of vertical oriented fabrics, and 45°inclined fabrics material for toys, other material to making toys and soft-filling toy.

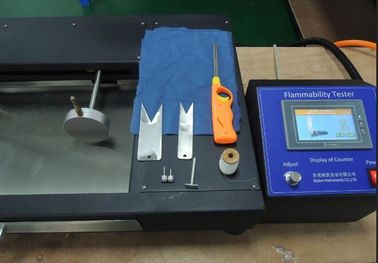

    The gas is controlled by a solenoid valve, ignition time is digitally set and test result is displayed on large LCD. The improved marker threads mounting devices ensure easy and fast installation, with accurate burner and micro switch operated trip threads. 3 optical scanning devices are used to detect the severance of threads to offer accurate and reliable timing.


    Test Standards:


    BS EN ISO 6940,EN ISO 6941GB/T 5456, GB/T 5456,8745, GB/T 8746


    Description:


    ISO6940 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
    It is also applicable to all kinds of textile material of flammability test;



    Specifications:



     The ignition time setting range  0 ~ 99.99 s
     The combustion timing range  0 ~ 999.9 s
     Fire mouth Angle: with the horizontal Angle  0 ° / 30 °, 90 ° can be adjusted
     The test flame height  20 mm / 40 mm
     Specimen holders 12 pcs
     Marker Threads  45 tex to 50 tex
     Combustion gas  commercial grade propane or butane or butane/propane  mixtures
     Volume (WxDxH)  80X55x66cm
     Weight (about)   45 kg
     Power supply  1∮ AC 220V 50Hz





    ISO 6940 Vertical Flammability Testing Equipment For Fabrics Material
