Home ProductsTemperature And Humidity Test Chamber

High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission

High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission

    • High Temperature Test Chamber  chamber for testing VOC and Formaldehyde Emission
    • High Temperature Test Chamber  chamber for testing VOC and Formaldehyde Emission
    • High Temperature Test Chamber  chamber for testing VOC and Formaldehyde Emission
  • High Temperature Test Chamber  chamber for testing VOC and Formaldehyde Emission

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: Plywood case
    Delivery Time: 10 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description

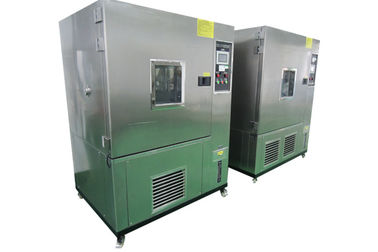

    SKYLINE: 1000L Temperature And Humidity Test Chamber Inner Size: 1000*1000*1000
    Controller: TEMI” South Korea“TEMI” Temperature Fluctuation: ≤ ± 1 ℃;
    Temperature Uniformity: ≤ 2 ℃; Power Supply: 380V ± 10% V; 50Hz;

    High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission

    Applications

    1. To simulate test environment with different temperature and humidity
    2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test,moistening test and drying test…
    3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
    4. Uncover test unit weakness in a short-term test with accelerated time effect


    Specifications


     Inner size
     W*H*DCM

    40*50*4050*60*5050*75*6060*85*80100*100*800100*100*100
     External size   W*H*DCM90*136*154100*146*184100*161*210110*171*237150*186*257150*186*267
     Temperature range-40°C~+150°C
    (A:-20°C B:-40°C )
     Humidity range20%~98%R.H.(10%-98%R.H/5%~98%R.H)

     Temp humidity
     analytic accuracy/   uniformity

    ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.

     Temperature   humidity
     control   accuracy/fluctuation

    ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.

     Heat/cooling time


    About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
     Inner and outer  materialsSUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
     Insulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
     Cooling system

    Air cooling/single segment compressor(-20°C) ,air and water double segment compressor
    (-40°C~-70°C)

     Protection devices

    Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
    super humidity over-temperature protection switch, fuse, failure warning system


     PartsWatching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
     ControllerTEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional
     CompressorOriginal France“Tecumseh”brand
     Power1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz


    Features

    • Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
    • Control temperature&humidity well-distributed, precisely and steady.
    • Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
