Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine

China Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine supplier
Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine supplier Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine supplier Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine supplier

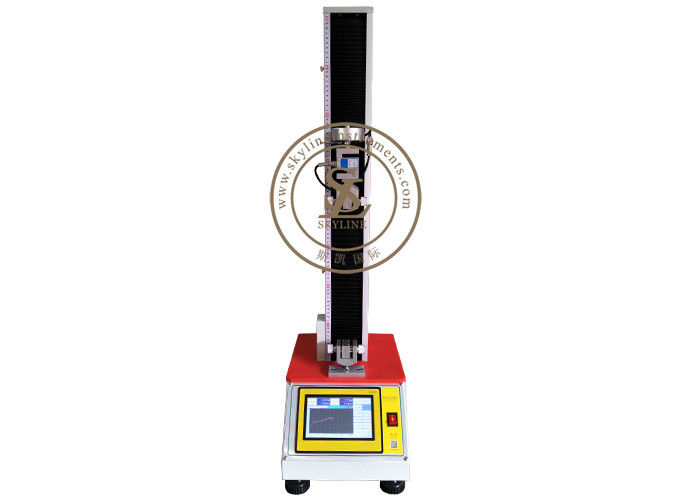

Large Image :  Tensile Strength Testing Machine Single Column Universal Tensile Testing Machine

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: calibration certificate
Model Number: SL-T809

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
Skyline: Tensile Strength Tester Maximum Test Force: 500kg
Force Display Resolution: 1/500000 Speed Accuracy: 0.001
Speed Control Range: 0.001-510mm / Min Weight: 85kg

Material Lab Testing Equipment PC Controlled Single Column Universal Tensile Strength Testing Machine



Technical parameters

 Maximum external  dimensions

  520 * 450 * 1300
 Equipment quality   85kg
 Force unit   Free switching kgf, N, Lbf, KN, tf (SI), tf (long), tf (short), ozf, etc
 Maximum test space  up and down the effective space 650mm, left and right unrestricted
 Maximum stroke  1000mm Other specifications can be specified 1100mm, 1200mm, 1300mm travel and so on
 Maximum test force  500kg
 Force display resolution  1/500000
 Force test accuracy  0.5-1 level
 Displacement Display  Degrees  0.0001mm
 Speed control range  0.001-510mm / min
 Speed accuracy  0.001
 Beam movement the upper and lower beams move the jog function





Material

 Base  modular sheet metal structure, easy maintenance
 Guide column  the use of high-strength special steel
 Column guard  the use of special high-quality aluminum alloy casting molding (by a special two-color mixing spray technology)
 Beams  the use of high-strength special steel processing, never deformation
