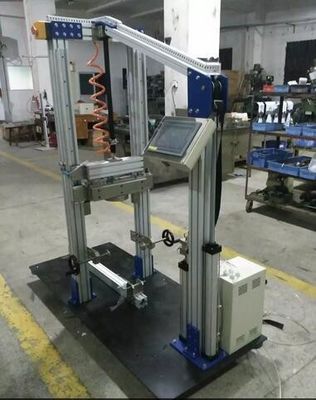

Drop height 50mm Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098

Drop height 50mm Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098

  • Drop height 50mm  Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098
  • Drop height 50mm  Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098
Drop height 50mm  Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-BC001
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Children Bicycle Testing Equipment Fall Weight: 22.5kg
Drop Height: 50mm Drop Dia: 150mm
Roller: Dia 150mm R 200mm Saddle Pipe Load Capacity: 30kg
High Light:

physical testing equipment

,

brake testing equipment

ISO 8098 Bike Frame Front Fork Assembly Impact & Drop Tester



Applications:



The machine is suitable for children bicycle frame / front fork assembly impact test.

Saddle pipe load capacity:30kg

Saddle Weight center of gravity 75mm above of the top of the handle stem



Determine the distance between the center axes of the two axes. Install a lightweight roller on the front fork to clamp the frame / fork assembly vertically to the rear axle rigid jig.
A 22.5kg mass drop from 50mm height at the center of the wheel and the direction of the opposite fork to the direction of the fall to the light wheel.
This machine is used to simulate the ability of a bicycle to withstand the impact of an obstacle on a front wheel when riding an obstacle



Standards:



ISO 8098

GB 8098



Parameters



Saddle weight center of gravity 75mm above of the top of the handle stem



 Fall heavy weight  22.5kg
 Drop height  50mm
 Drop dia  150mm
 Roller: dia  150mm R 200mm
 Counter  Saddle pipe load capacity 30kg





Drop height 50mm  Bike Frame Front / Fork Assembly Impact Test Equipment / Drop Tester ISO 8098 0



Applications Industry

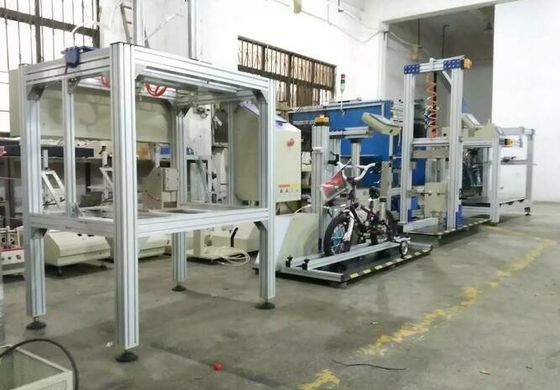

All kinds of Children Bicycle Frame Fronts can be tested on the Bike Frame/Front Fork Assembly Impact & Drop Tester
