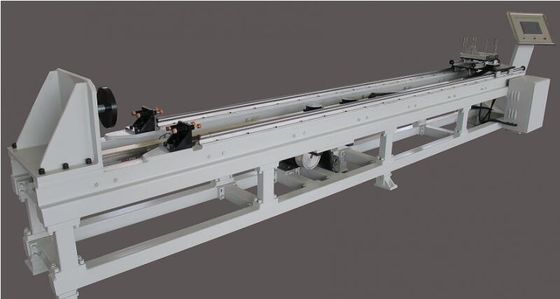

Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved

Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved

    • Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved
    • Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved
  • Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-L23X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 35 work days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Roller-Skate-Shoe-Impact-Testing-Equipment Standard: GB/T20096-2006
    Load: 16kg,13.33kg,14.69kg,12.8kg,15kg Speed: (2.5±0.3)m/s
    Grinding Wheel Test Angle: 0-15 ° Accuracy Of 1 ° Accuracy: 0.01m / S;
    Name: Lab Testing Equipment

    Footwear Testing Equipment Roller Skates Slope Impact Testing Equipment

    Product features

    1. With anti-secondary impact device to ensure that only one impact;
     2. Can set the number of tests and show the current number of tests;
     3. According to different types of roller shoes (double row wheel, single row wheel), configuration different Of the fixture;
     4. Speed ​​can be adjusted to meet the requirements of different specifications of the impact of shoes;

    Technical parameters

    1. Can be fixed single row of roller shoes and double row of skate shoes for testing;
    2. With impact devices, impact energy 0-135J Adjustable test speed, set the number of impact test, speed (0-5.0) m / s, accuracy 0.01m / s;
    4. Brake frontal impact test double row A (2.5 ± 0.4) m / s, load (about) 14.69 kgfB class 60J, (2.7 ± 0.3) m / s, load (about) 16.46 kgf single row A class 50J, (2.5 ± 0.3) m / s (About) 15 kgf;
    5. Wheel front impact test double row A class 90J, (3.75 ± 0.4) m / s, the load (about) 15 kgf; (4.5 ± 0.4) m / s, load (about) 13.33 kgfB class 90J, (4.5 ± 0.4) m / s, load (about) 13.33 kgfB class 90J, (2.7 ± 0.3) m / s, (3.5 ± 0.4) m / s The impact of the traveling sheet, load (approximately) 14.69 kgf;




    Technical parameter:



    Model

    Single

    A1

    Single

    A2

    Double

    A1

    Double

    A2

    Single

    B1

    SingleB2

    Double

    B1

    Double

    B2

    Load 16 kg 13.33 kg 14.69 kg 12.8 kg 15 kg 14.69 kg 16.46 kg 16.46 kg
    Speed (2.5±0.3)m/s (4.5±0.4)m/s (3.5±0.4)m/s (3.75±0.4)m/s (2.0±0.2)m/s (3.5±0.4)m/s (2.7±0.3)m/s (2.7±0.3)m/s
    Volume
    (W×D×H)
    Host 460 × 75 × 87 cm
    Control box 37 × 37 × 117 cm
    Power supply AC 220V, 50/60 HZ(According to country or designated)
