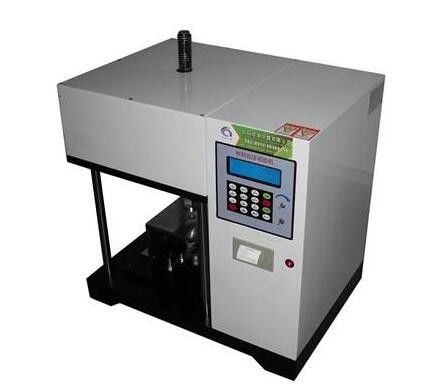

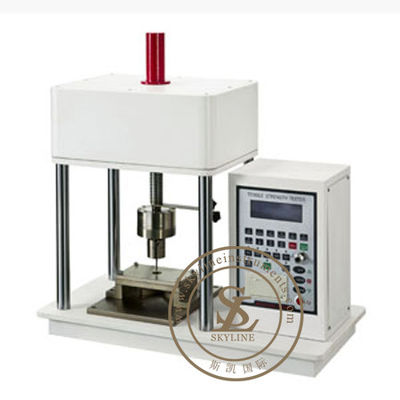

ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test

ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test

    • ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test
    • ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test
  • ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-L19

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Footwear Compression And Puncture Resistant Tester Sensor Capacity: 20KN
    Load Resolution: 1/20000 Accuracy: Within 1%
    Compression Speed: 5 ± 2mm/min Weight: 148kgs

    ISO 20344 Footwear Testing Equipment Safety Shoes Compression Puncture Resistant Tester

    Product introduction

    Safety Shoes Compression Puncture Resistant Tester is used to measure the compression strength for safety shoes steel head and puncture-resistant performance for steel plate. It Suitable for all types of steel head compression for safety shoes and puncture-resistant test for steel plate,and to prevent the injury of accident to operator in the workplace by wearing owing to the security of shoe

    It is used to determine the safety footwear ability to resist the compression

    Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.

    Specification
     Sensor capacity  20KN
     Load resolution  1/20000
     Accuracy within  1%
     Display system English controller
     Compression speed  5 ± 2mm/min
     Motor AC motor, control system
     Measuring fixture compression/puncture fixture
     Dimension  82*58*71cm
     Weight  148kg
     Power  AC220V 50HZ 0.4KW




    Test Standards
    ISO 20344 ANSI Z41 LD50,A EN12568;ANSI;JIS;CSA;
