White Textile Testing Equipment Digital Air Permeability Tester For Fabric

White Textile Testing Equipment Digital Air Permeability Tester For Fabric

    • White Textile Testing Equipment Digital Air Permeability Tester For Fabric
    • White Textile Testing Equipment Digital Air Permeability Tester For Fabric
  • White Textile Testing Equipment Digital Air Permeability Tester For Fabric

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-F26

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 10 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: Digital Fabric Air Permeability Tester Pressure Test Range: 1~3500Pa
    Test Errors: ≤±2% Fabric Thickness: ≤8mm
    Brand: SKYLINE Dimension: 820×600×1300mm(L×W×H)

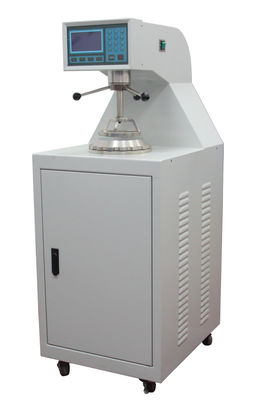

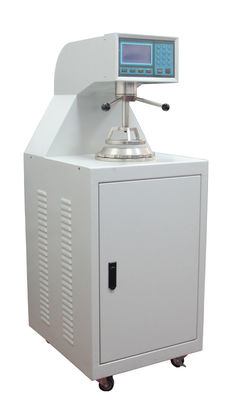

    Textile Testing Equipment Digital Air Permeability Tester



    The instrument is used for the air permeability test of special industrial fabrics, general fabrics, knit goods, coated fabrics, non-woven fabrics, and industrial filter paper etc. The instrument performance is compliant with the GB/T5453-97 Fabric Permeability determination and other requirements of national standards for test instruments.

    With digit display, digital test parameter setting and a highly accurate sensor adopted instead of traditional water column pressure difference test method, and with a microcomputer for test data computation and test result print in stead of manual conversion, the instrument is easy in operation and has a high accuracy and efficiency.



    Specifications:



     Pressure test range 1~3500Pa
     Testable air permeability 2~9999mm/s
     Test errors ≤±2%
     Fabric thickness ≤8mm
     Digital adjustment Dynamic adjustment according to data feedback
     Definite value ring for specimen area(2 Pieces of each specification) 5cm2;20cm2;50cm2;100cm2
     Definite diameter ring for specimen area(1 Pieces of each specification) Ф50mm(≈19.6cm2)Ф70mm(38.5cm2)



    Nozzle: 11 Pieces



    Code 00 01 02 03 04 05 06 07 08 09 10
    Dia.φ(mm) 0.8 1.2 2 3 4 6 8 10 12 16 20

     Power 1200W
     Weight 65Kg
     External dimensions

    820×600×1300mm(L×W×H)

    White Textile Testing Equipment Digital Air Permeability Tester For Fabric
