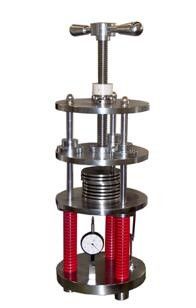

Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester

Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester

    • Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester
    • Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester
    • Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester
  • Easy Operation Footwear Testing Equipment SATRA-TM 64 Compression Rebound Tester

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-LC089

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 15 work days
    Payment Terms: Western Union, MoneyGram, T/T
    Contact Now
    Detailed Product Description
    SKYLINE: Rubber Compression Reround Tester Pressure Plate Diameter: 230mm
    Sample Disk Diameter: 100mm Test Plate Thickness: 5mm
    . Effective Space: 160mm Volume: ф330 × 740mm

    Footwear Testing Equipment SATRA-TM64 Compression Rebound Tester



    Use

    It is used to test performance of rebound for rubber after a certain time and pressure.

    Take the standard test piece, the distribution flated on the test plate, clamped between two plates, the release of the specimen and cooling after prescribed time.



    Principle
    At the standard laboratory temperature, the known height of the sample, under the specified temperature, pressure conditions, compression for a certain period of time, and then under the standard temperature conditions to remove the compression, the sample in the free state, return to the specified time, Kind of height.



    Main technical parameters

     Pressure plate diameter  230mm
     Sample disk diameter  100mm
     Test plate thickness  5mm
     Effective space  160mm
     Volume (about)  ф330 × 740mm



    Features

    • Each group can test three specimens at the same time
    • Up to eight sample plates can be placed on the instrument at the same time
    • Use the pointer dial indicator with the scale value of the table, showing the pressure value
