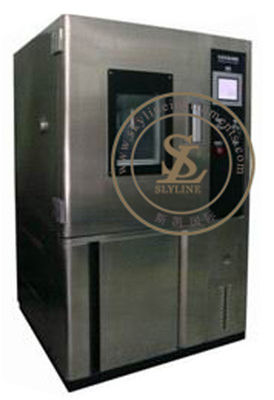

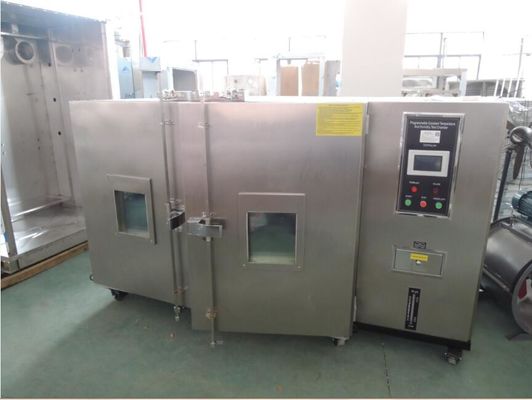

Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate

Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate

    • Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate
    • Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate
  • Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 3 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: Temperature And Humidity Condition Chamber Controller: LCD Colour Touch Screen
    Internal Material: SUS#304 Stainless Steel External Material: SUS#304 Stainless Steel With 3B Surface Treatment: SUS#304 Stainless Steel With 3B Surface Treatment
    Humidity Range: 10 To 98%RH Accuracy: ±2%RH Power Supply: Single Phase 220V; 3phase 380V

    Constant Programmable 1000L Programmable Temperature and Humidity Testing Chamber



    1000 L Programmable Temperature & Humidity Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



    Features

    • The whole structure, that is, test box, refrigeration system, air conditioning system, electrical control cabinet, refrigeration unit as a whole, the refrigeration unit is located in the bottom of the box, electrical control part of the side of the test chamber, easy to operate.
    • The box
    • A) the end of the studio in the duct sandwich, the distribution of heaters, refrigeration evaporator, blast motor, fan and other devices;
    • B) The test box side with a cable threading hole 1, size ф50mm;
    • C) The test chamber is made of 1mm thick SUS304 stainless steel plate. The box shell is made of 1mm thick cold plate
    • D) The studio is equipped with two adjustable stainless steel strip shelves;



    Technical Data



     The temperature range  -60 ℃ ~ + 180 ℃
     The humidity range  20% to 98%
     The temperature fluctuation  ≤ ± 0.5 ℃
     The temperature uniformity  ≤ 1 ℃
     The temperature deviation  ≤ ± 2.0 ℃
     The rise and fall rate

     From -20 to + 180 ° C for about 65 min

     From -20 to 60 ° C for about 85 min

     Wind speed  1.7 ~ 2.5m / s
     Power  about 6Kw
     Power supply  380V ± 10% V; 50Hz
     Interior dimension  100x100x100cm
     External dimension  1470*1400*2100mm (W×D×H)



    • LCD touch screen
    •
    • Inner material:SUS#304
    •
    • TEMI 850 controller
    •
    • Touch-screen display
    •
    • PLC programmable logic Inputs/Outputs (Siemens or HT-900 Korea)
    •
    • Compressor (France Tecumseh brand)



    Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate
