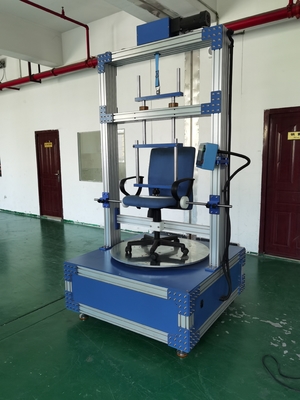

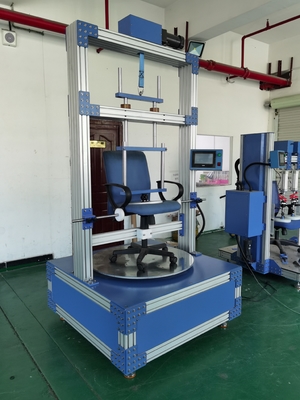

Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture

Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture

    • Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture
    • Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture
  • Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-T03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: Plywood case
    Delivery Time: 35 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Chair Swivel Testing Machine Loading Weight: 102kg (225lb)
    Standard: DIN 4551, EN 1335, NEN 1812 And BIFMA 5.1. Brand: SKYLINE
    Cycle Rate: 5 ~ 15 Rotations Per Minute. Warranty: 18 Months

    BIFMA 5.1 Furniture Testing Equipment Chair Swivel Testing Machine

    Use

    Swivel Durability Tester is used for seating furniture, with load pad and accessories for the fixing of the chair,acc. to DIN 4551, EN 1335, NEN 1812 and BIFMA 5.1.

    It is used for office chairs, stools, gas springs, tested units are subjected either to the entire test procedure prescribed by the standards or to selected individual tests.

    The test axes each have their own controllers assembled in the immediate vicinity, which are operated from a Touch panel and controlled by PLC.


    Application
    This test applies to all types of chairs with a swivel seat.
    Purpose of Test: This machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.


    Specifications

     According to test Standard  BIFMA X5.1-2002, Test No. 9
     Applicability  This test applies to all types of chairs with a swivel seat.
     Purpose of Test  this machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling
     Machine Mechanism  Loading weight : 102kg (225lb)
     Cycle rate  5 ~ 15 rotations per minute
     Test cycle 120,000 times
     Counter  999,999
     Loading weight  Adjustable


    Standards
    DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BSI/BS 5459, EN 581-2



    Consisting of

    1 test frame

    1 swivel test rig, driven electrically

    1 actuator load controlled, piston diameter 80mm, piston stroke 500mm, 2500N

    1 load pad, diameter 200mm in acc. to DIN EN 1335 with cardanic clamping connection

    1 range of standard fixing elements

    1 load cell 5kN - 1 set of stops, clamps

    Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture
