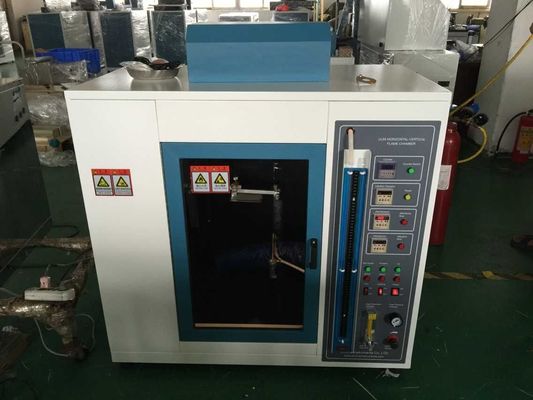

Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber

Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber

    • Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber
    • Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber
  • Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-SE03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Needle Flame Test Chamber Nner Hole Diameter: Nner Hole Diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ,
    Burner Angle: 0,°20°, 45° (adjust Flame Height) Power: 800VA ,220V, 48-60Hz
    Chamber: ≥0.5m3 Standards: IEC884-1,VDE, IEC335,UL1694

    Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber



    Introductions:

    Needle Flame Test Chamber is used to test the resistance of fire caused by an interior fault such as leakage current in cable & wire and the like. It meets the requirements of Chinese and IEC60695-2-2 and IEC61347-1 standards.



    Application:

    Electrician & electron product
    Components and accessories of household appliances


    Features:
    a.All stainless steel and brass constructions.
    b.Burner can be ignited automatically.
    c.Temperature and test time display by digital meters.
    d.A big window in the door makes your viewing more convenient.



    Technical parameter:

     Needle burner

     inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ,

    length ≥ 35mm, stainless steel

     Burner angle  0,°20°, 45° (adjust flame height)
     Thermocouple

     Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand

    temperature-40°C~ 1100°C

     Burning time  0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
     Hold Burning time  0-999.9 s ± 0.1 s, automatic recording, manual time-out
     Flame Height  12mm ± 1mm (with height measurement instruments)
     Flame Gas  butane gas/Butane gas, min. 95% purity (can use bottled lighter gases)
     Temperature Test Range  0~1000°C
     Flame Temperature Requirements  from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds
     Standard Copper Block  4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP
     Test process  automatic control, independent convulsions
     Chamber  ≥0.5m3

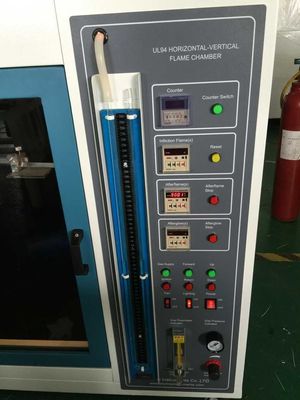

     Control  Using single chip microcomputer + touch screen control
     Consult standard  GB/T5169.10-2006 , IEC60695-11-5:2000,UL746A
     Power Supply  800VA ,220V, 48-60Hz
     Display panel language  English(customize available)

    Cable Electronic Testing Equipment IEC60695 Needle Flame Test Chamber
