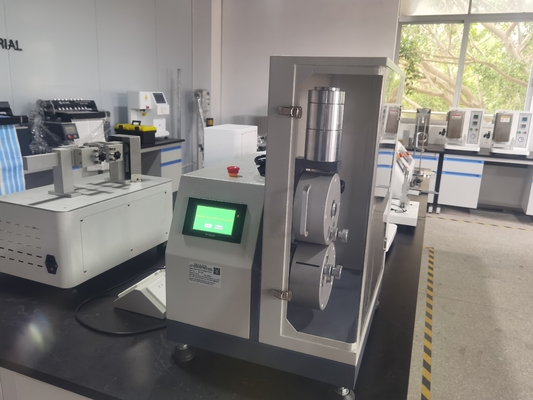

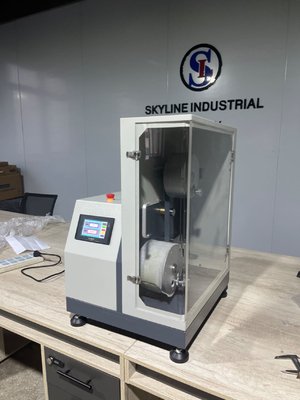

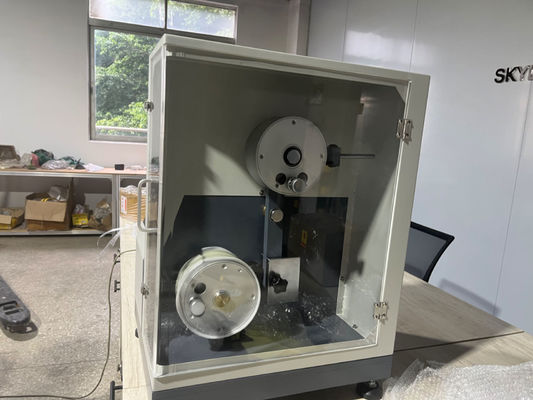

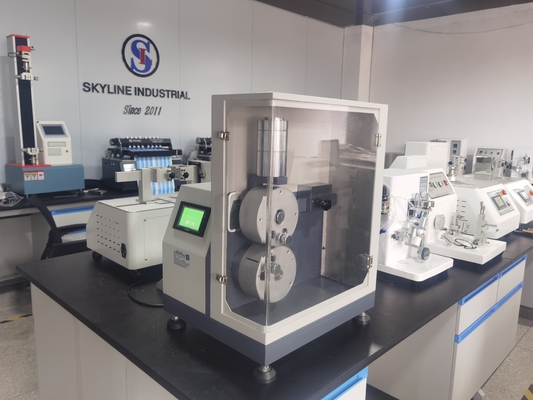

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester

  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
  • SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Footwear Testing Equipment Roller Dia: 136mm
Roller Width: 80mm Power: AC220V 90W
Dimensions: (W×D×H)45*55*57cm Standards: SATRA TM103
High Light:

abrasion resistance tester

,

shoe wear tester

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester



Product introduction

This machine is suitable for detecting the binding capacity of the hook and loop fastener ( Velcro tape) after the repeated

stripping and fitting action.

In use Velcro repeated stripping and fit the action, so after a certain number of times, then rolling sample to the weight of the wheel itself, so that uniform fit measured adhesion forces with some of the adhesion strength



Technical parameters

 Rolling speed  72rpm
 Load  5kg
 Roller Dia  136mm
 Roller Width  80mm
 Counter LCD display  0-999,999
 Dimension (W×D×H)  45*55*57cm
 Power  AC220V 90W



 Speed  60+/-5r/min
 Load  1+/-0.1N/mm
 Counter  LCD.0-999.999
 Dimensions  450 x 550 x 570mm ( L x W x H )
 Weight  70kg
 Standards

 DIN-3415

 BS EN ISO 22776

 SATRA TM123

 Standard Accessories



 Weights pack of 3

 Weights device pack of 1

 Handle pack of 1

 Power Line pack of 1

Velcro Fatigue Tester.pdf

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester 0

What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
