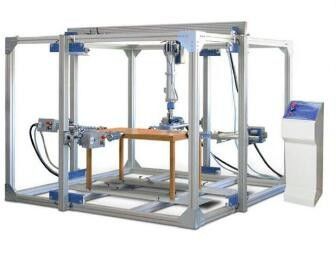

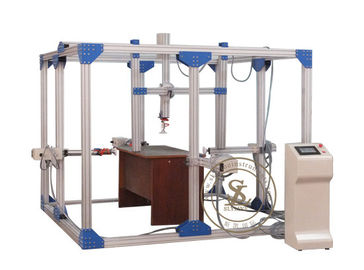

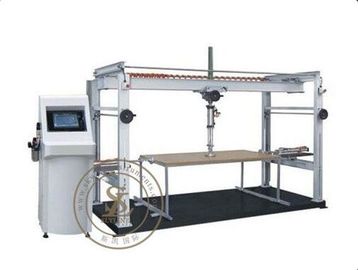

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine

  • 5 Air Cylinders PLC Control Furniture  Testing Equipment, Table Furniture Testing Machine
  • 5 Air Cylinders PLC Control Furniture  Testing Equipment, Table Furniture Testing Machine
  • 5 Air Cylinders PLC Control Furniture  Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture  Testing Equipment, Table Furniture Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T26
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 35 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
Name: Furniture Testing Machine Controller: PLC+ Touch Screen
Motor: Air Cylinders Standard: EN 527-3, EN581-3 And BIFMA X5.1, IS5967
Air Supply: 7kgf/cm^2 Capacity: 2KN,4 Pcs;5KN,1 Pcs
High Light:

furniture testing machine

,

stability testing equipment

5 Air Cyliners PLC Control Toys Testing Equipment, Table furniture testing machine



Features

  • It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
  • Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
  • Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
  • It has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
  • It equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
  • Color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing.



Strength Testing

  1. Vertical static load test
  2. Sustained load test
  3. Horizontal static load test
  4. Vertical impact test


Stability Testing:


    1. Vertical stability test
    2. Horizontal impact test.


Technical Parameter



Basic Test Frame 2.5x2.5x2m,be made of 80x80mm Alu.material
Load air cylinder diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N
Impact cylinder diameter 50mm, 1pcs, stroke 400mm
Load air cylinder diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N
force sensor high precision sensor,capacity 2KN,4 pcs;5KN,1 pcs
Control way touch screen + PLC control
Counter 0~999999 times (can by adjusted)
Force adjust precision pressure valve equipment with sensor to disply
Air supply 7kgf/cm^2
Power 1∮ AC 220V 50Hz 5A


Testing Standards

  • EN 1730:2012
  • EN 527-3, EN581-3 and BIFMA X5.1, IS5967
  • EN 1725:1998 7.3 Durability test
  • EN 1725:1998 7.5 Durability of bed edge
  • EN 1725:1998 7.6 Vertical static load test



5 Air Cylinders PLC Control Furniture  Testing Equipment, Table Furniture Testing Machine 0
