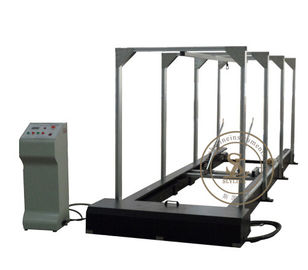

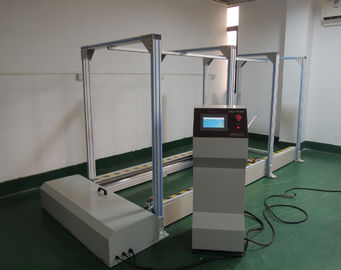

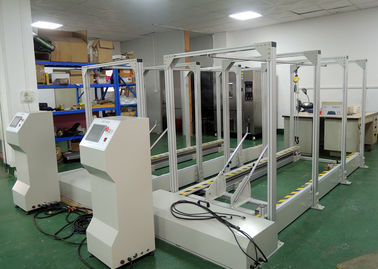

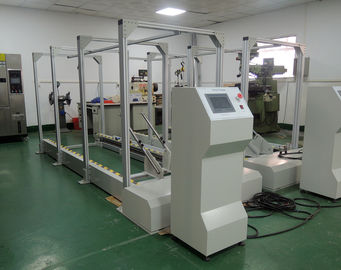

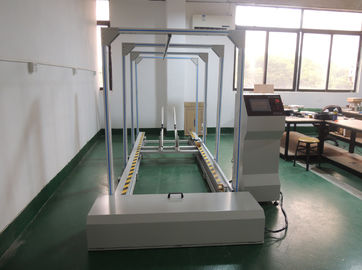

IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys

IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys

  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
  • IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S45
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: 2m/s Tester / Toys Dynamic Strength Tester Standard: EN71-1-2011-8.22 ASTM F963, Clause 8.20 ISO 8142-1-2012-5.27
LoadA,B: 25kg,50kg Test Speed: 2±0.2m/s
Obstruct: 50mmx50mm Dimension (WxDxH) Main Machin: 153x450x156cm
High Light:

stability test chamber

,

swings testing equipment

Toy Dynamic strength Tester for Wheeled Ride-on Toys Toys Testing Equipment



Product introduction

This instrument is mainly used for test the proformance of rides at the speed of toys 2m / s to strike 50x50mm obstruct. The machine simulation children riding tricycle operation state, put on the load on the sample and use 2 m/s speed to strike a piece of 50 x50mm obstacles block.After testing to check sample structure and performance if are in good condition or not

A load is secured to the toy, and articulated arms with the elbow joints in a downward position are attached to
the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient
step.
Determine whether the toy continues to conform to relevant requirements of this European Standard.



Technical parameters

 Conveyor belt speed  2m/s
 Dimensions  153x450x156cm
 Weight  900kg
 Standards

 EN71-1-2011-8.22

 ASTM F963, clause 8.20

 ISO 8142-1-2012-5.27

 Accessories

 Load A

 Load B



2ms Tester.pdf

Company Profile.pdf

Load A                                                                                          Load B

IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys 0IS9873 Toy Dynamic Testing Equipment , Strength Testing Machine For Wheeled Ride On Toys 1
