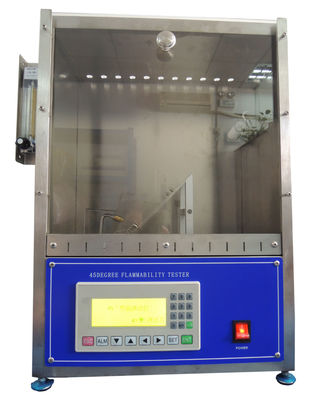

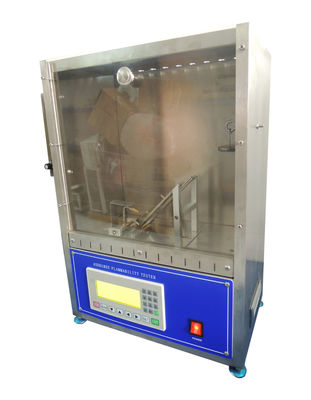

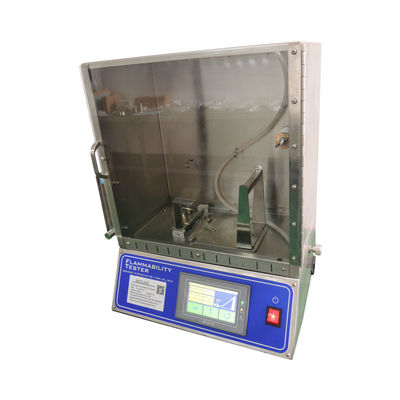

ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel

ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel

    • ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel
    • ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel
    • ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel
  • ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S19

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: neogitable
    Packaging Details: plywood case
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: 45 Degree Automatic Flammability Tester Standards: ASTM D1230, FTMS191-5908, CFR 16-1610, CALIF TB117
    Ignition Time: 0.1s Can Be Set Dimension: 400 X 300 X 500mm (L*W*H)
    Weight: 45kg Controller: PLC

    ASTM D1230 Flammaility Testing Equipment 45 Degree Automatic Flammability Tester



    Indroduction

    45 Degree is used to evaluate compliance of fire-retardant products with fire-retardant performance standards according to the combustion method, and measures combustion characteristics such as After Glow and After Flame of test specimen installed at a 45-degree angle.

     45˚ Flammability tests After Flame Time and After Glow Time of specimen by heat in the chamber.

    This measures flame retardance about specimen of less than 5 mm thick (Board, Plate, Sheet, Film and so on) by 45˚ Micro and Airmix method and evaluates materials about 3rd grade of flame retardance (less than 15cm and 5 seconds)



    To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.





    Key Specification





     Time Display  0-99.9S
     Resolving Capability  0.1S
     Ignition time  1s or set it Set arbitrary
     Dimensions  400 x 300 x 500mm (L*W*H)
     Power  AC 220V / 50Hz / 2A
     Standards  ASTM D1230, CRF 16-1610
     Weight  45kg



    Standards:

    • KS F 2819 : Testing Method For Incombustibility Of Thin Materials (Testing Method for incombustibility of thin materials for construction)
    • ASTM D 1230 Canadian Minimum Flammability Standards for most fabrics
    • NFPA 702 Forced edge ignition of fabrics cited by California for Hospital Apparel and Bedding Fabrics
    • CA TB 117 (2000) Upholstery Fabrics (Section E) Synthetic Filling (Section C)
    • BIFMA Upholstery material screening test



    ASTM D1230 45 Degree Flammability Tester With Glass Observation Panel

    Brush device
