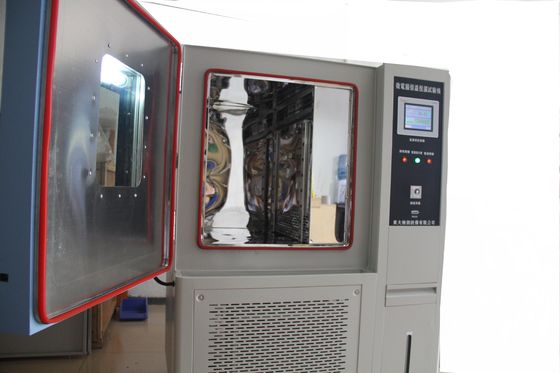

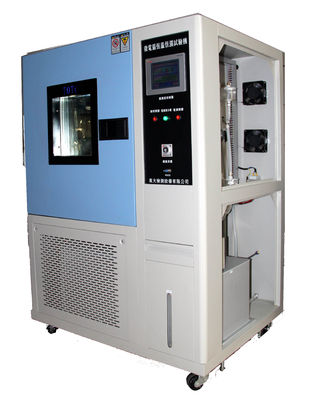

1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material

1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material

    • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material
    • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material
  • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 10 workding days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 unit / week
    Contact Now
    Detailed Product Description
    Skyline: Contant Temperature And Humidity Testing Chamber Controller: LCD Colour Touch Screen
    Stability: ± 2.5% RH. Temperature: -40 ℃ ~ 150 ℃
    Material: Inner Box 304# Stainless Steel Temperature Distribution: ± 1.0 ℃



    1500L Temperature and Humidity Testing Chamber with 304 Stainless Steel Material



    It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.



    Parameters


    Performance: (for no-load, the air-cooled at room temperature 25 ℃)

     Temperature range  -40 ℃ ~ 150 ℃
     Temperature Control Stability  ± 0.2 ℃
     Temperature distribution is  ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃)
     Temperature rise time  room temperature rise to 150 ℃ need 35 minutes
     Cooling time
     Temp range Time needed  20~ 0℃ About 30 minutes 20~-20℃ About 40 minutes 20~-40℃ Around 50 minutes
     Humidity  10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be
     Stability  ± 2.5% RH
     Humidity distributions are degrees  ± 3%
     Temperature and humidity control  (ordinary normal range)



    Special Features of Temperature and humidity climatic testing chamber



    1. Controller: Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
    2. View window: A large transparent glass window to observe the testing samples.
    3. Material: (inner chamber materialz) SUS#304 stainless steel plate; (exterior chamber material) stainless steel plate
    4. Insulation: Double-insulated airtight container
    5. Compressor:imported French " Tecumseh "





    Safety device of Temperature and humidity climatic testing chamber

    • Humidifier dry-combustion protection
    • Independent over-temperature protection
    • Water shortage protection
    • Over-current protection
    • Refrigerant high-pressure protection switch
    • Over-current circuit breaker
    • Earth leakage protection and so on.
    • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material
