|SKYLINE:||Mattress Testing Machine||Controller:||PLC + Touch Screen|
|Motor:||Sevro Actuator||Standard:||ASTM F1566, EN1957|
|Wooden Hex Barrel Weight:||109KG||Cylinder Weight:||140 KG.|
Furniture Test Machine | ASTM F1566, EN1957 Mattress Rollator Testing Machine | SKYLINE
It apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.

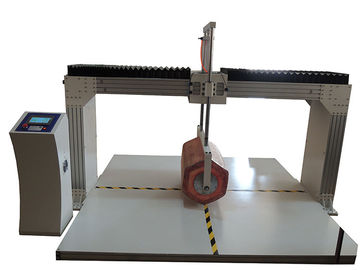

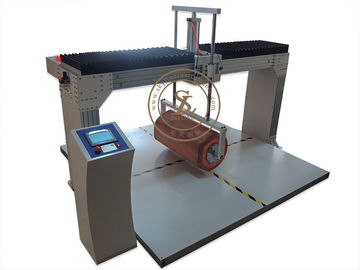

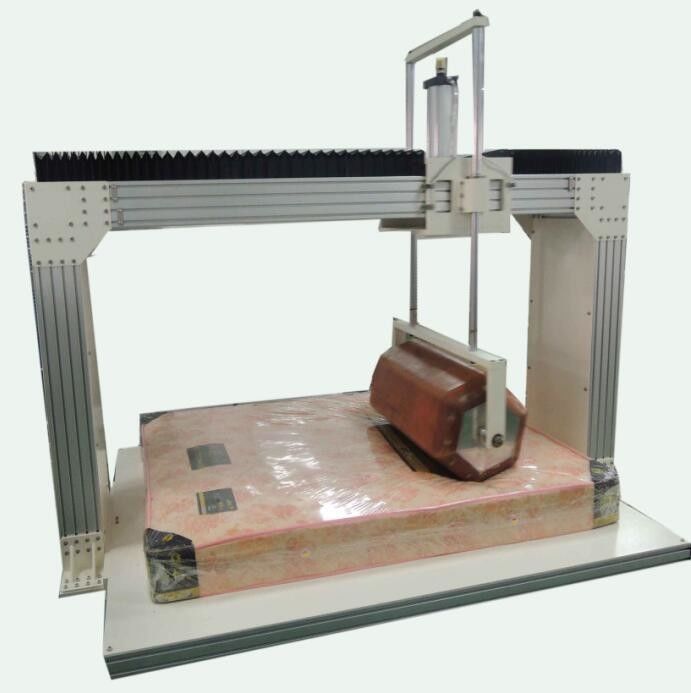

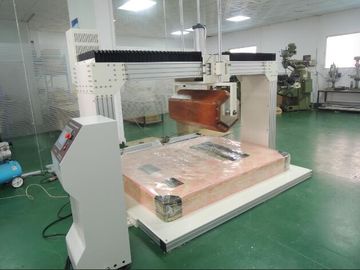

Use a horizontal scroll in wooden barrels or hex (at both ends of the cylinder diameter 250 mm, 300 mm, the middle part of the test on the mattress, scroll back to assess human action mattress durability.

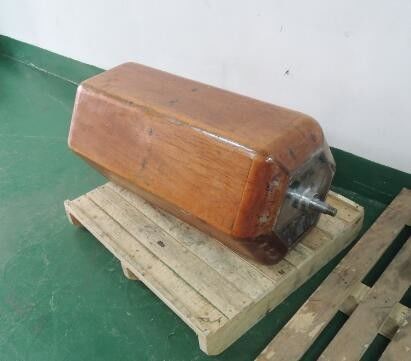

Wooden hex barrel weight = 109KG, cylinder weight = 140 KG.
According to different mattress size, scroll, adjustable (adjustment of the limit switch)
Low friction coefficient guides to ensure that the barrel weight fully to the mattress.
Suitable mattress greatest dimension 2.3 X 2.5M.
Text display provides a simple manipulation and creation.
ASTM F1566, EN1957
|1.Imposed the pressure on mattress by a transducer, pressure range to 300KG|
|2. Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N|
|3. Pusher travel speed adjustable, about 160 weeks times per minute|
|4. Suitable maximum specimen||2.2M ×2.2M|
|5. Display Accuracy||0.001kgf|
|6. Deformation precision||0.001mm|
|7. Impact height||0-300mm adjustable|
|8. Counter range||0-99999 times|
|9.Machine size||( L×W×H) about 3000×2800×2500mm|
