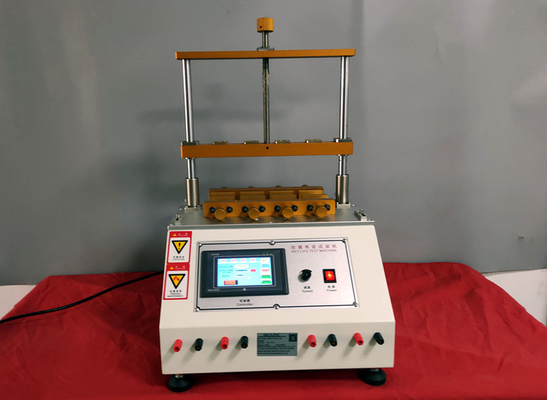

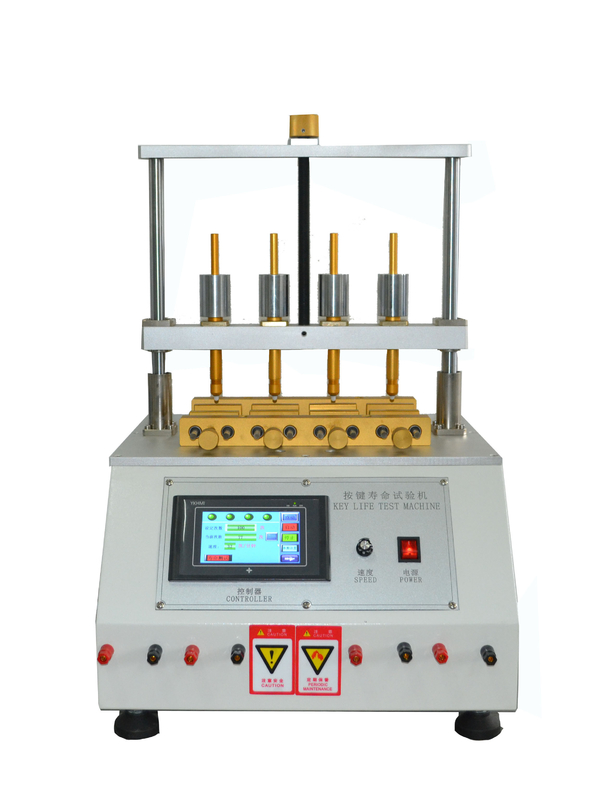

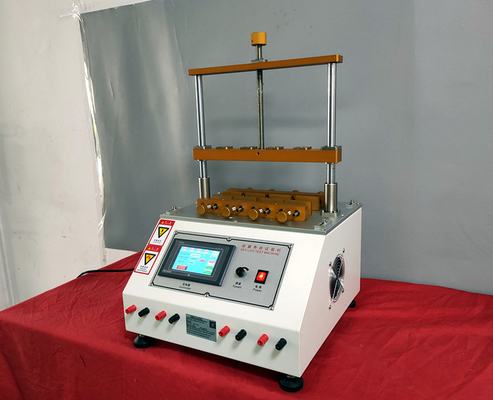

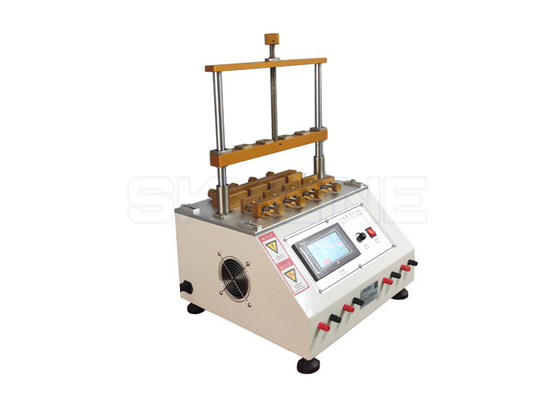

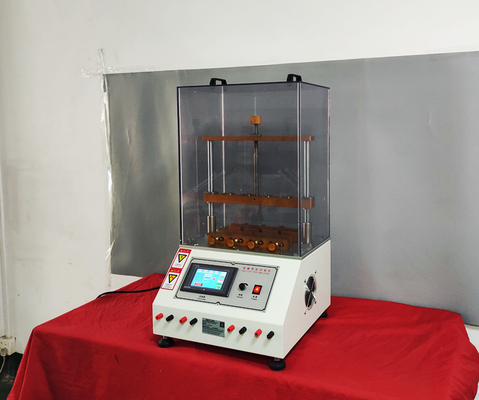

Button Press Test Machine With 4 Stations
Application
This machine can test the endurance life test of NOTEBOOK (mobile phone, PDA) buttons and various buttons and switches. It is especially suitable for the fatigue test of silicone rubber buttons. It has adjustable speed, set the number of times, and after the number of times is reached, the data can be kept. The number of tests can be tested simultaneously. Several products can be tested at the same time (each product can be tested at multiple points). Set different pressures and different levels.
Principle

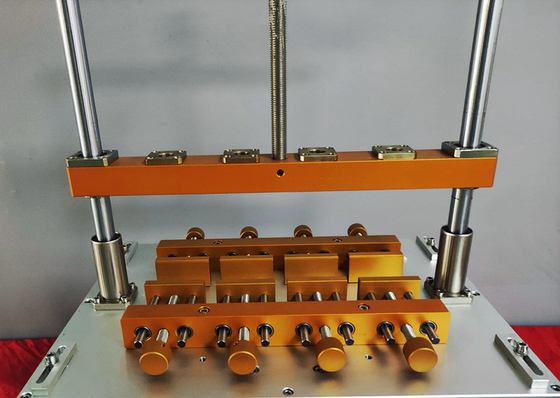

This machine is a key life testing machine. It uses a motor drive eccentric structure to move the worktable up and down, so that the keys or keyboard and the probe can move relative to each other.
Technical parameters
| Table load | 50kg |
| Test station | 4 stations |
| Action stroke | 10mm |
| Test times | 0-999999 (shutdown times can be set) |
| Superimposed load | 10g, 20g, 50g, 100g, 200g |
| Speed adjustment | 10 ~ 60 times / min adjustable |
| Speed display | directly displayed on the touch screen |
| Transmission mode | the motor drives the eccentric mechanism to act |
| Motion mode | vertical motion |
| Lifting function | manually adjust the height of the measuring rod |
| Appearance dimension | 450 * 350 * 700mm |
| Working power supply | 220V / 50Hz |
| Machine weight | About 50kg |
How do you test the endurance life test of buttons are working?
Observe the endurance of the keys by repeatedly clicking them.
