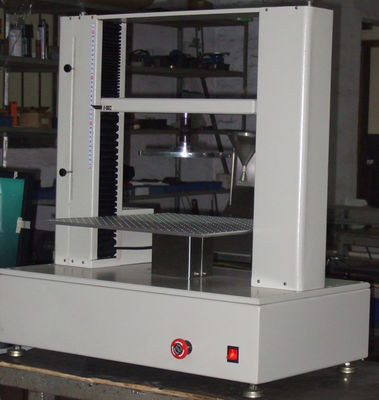

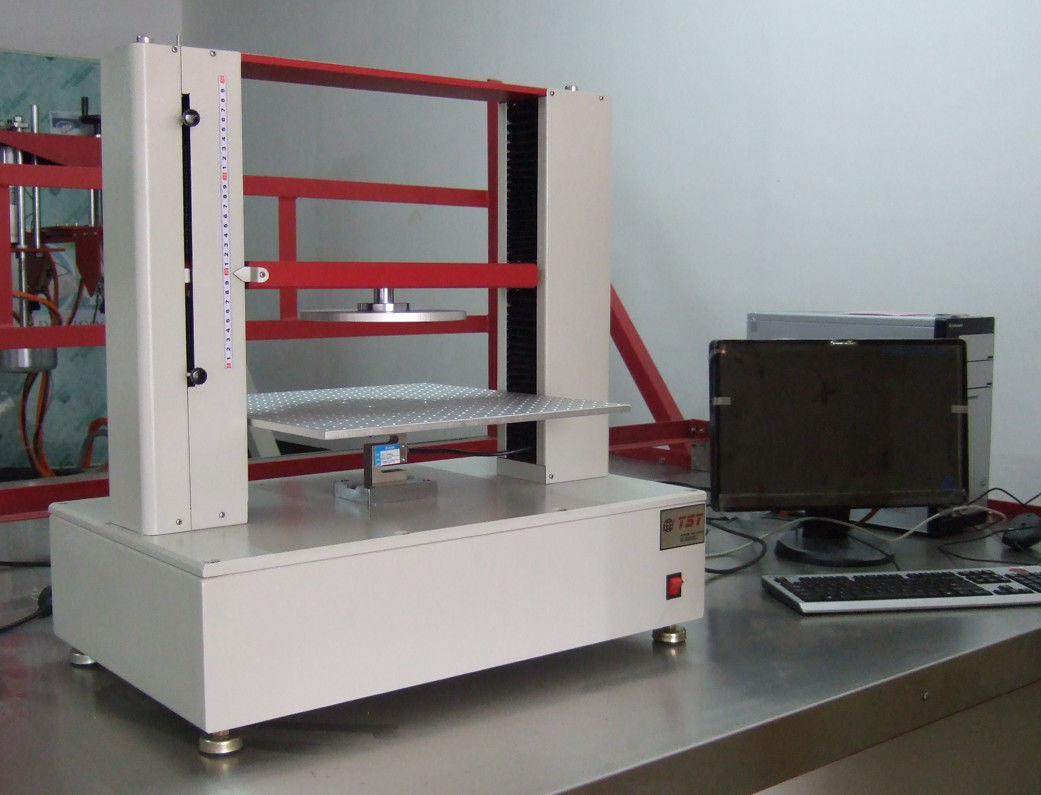

GB/T 12825 Foam Compression Hardness Testing Machine , 1KN 200mm Universal Hardness Tester

GB/T 12825 Foam Compression Hardness Testing Machine , 1KN 200mm Universal Hardness Tester

  • GB/T 12825 Foam Compression Hardness Testing Machine , 1KN 200mm Universal Hardness Tester
  • GB/T 12825 Foam Compression Hardness Testing Machine , 1KN 200mm Universal Hardness Tester
GB/T 12825 Foam Compression Hardness Testing Machine , 1KN 200mm Universal Hardness Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Foam Compression Hardness Tester Capacity: 1KN
Resolution: 1/1000 Accuracy: 0.5 Level (±0.5%)
Maximum Stroke: 200mm Power Supply: 1∮ AC220V 2.6A
High Light:

200mm universal hardness tester

,

1KN hardness testing machine

,

GB/T 12825 hardness testing machine

Sponge Foam Compression Hardness Tester



Instrument description
This machine is used to measure the concave hardness of porous elastic materials.



Test principle
The machine is controlled by computer-specific testing software, and the upper platen is moved downward by the motor drive screw, thus compressing the sample to the required percentage; as a result, the LOAD CELL force sensor is connected to the display to automatically display the force value.



Test standard
GB/T 12825, GB/T 18942.1



Technical parameter
Induction method: force sensor automatic display
Capacity: 1KN
Unit switch: Kg, N
Resolution: 1/1000
Accuracy: 0.5 level (±0.5%)
Maximum stroke: 200mm
Test speed: 0~100±20mm/min can be set
Upper pressure plate specification: diameter 200mm, bottom rounded corner R1mm
Lower platform: 420x420mm, vent diameter 6mm, spacing 20mm
Specimen specifications: side length 380mm, thickness 50mm
Automatic stop device: upper and lower limit of stroke
Power supply:1∮ AC220V 2.6A
