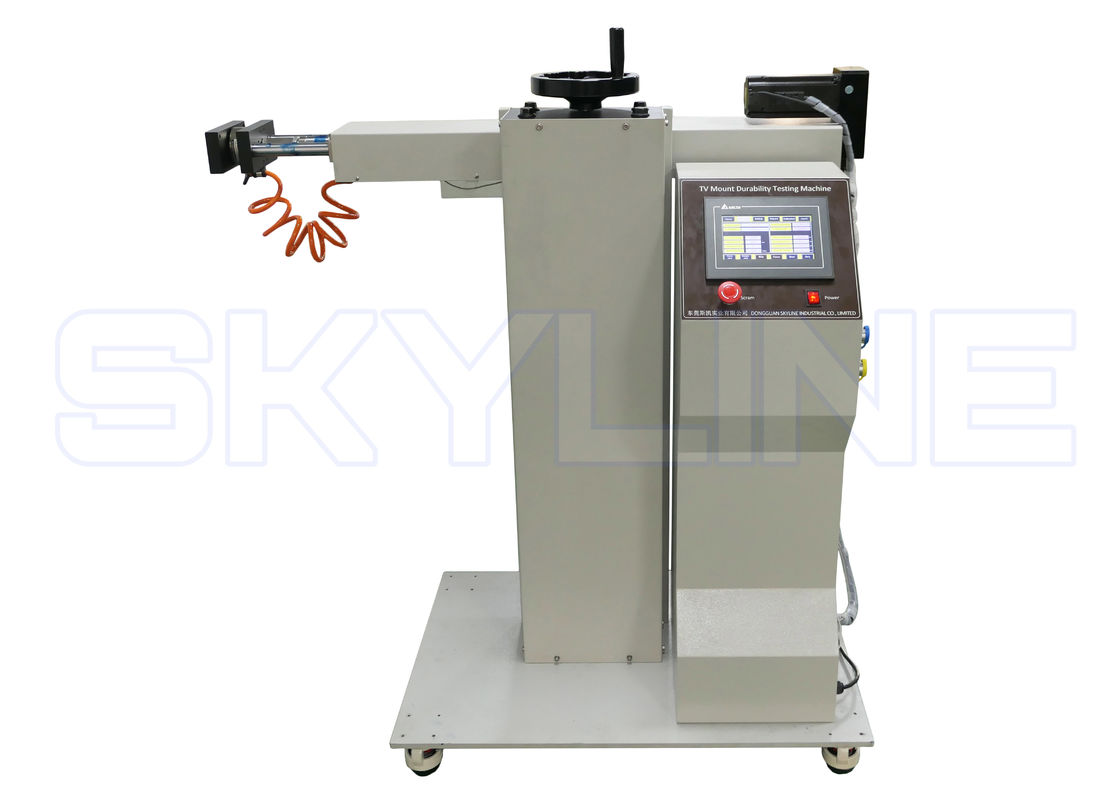

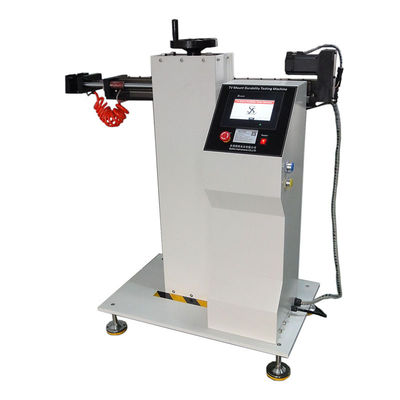

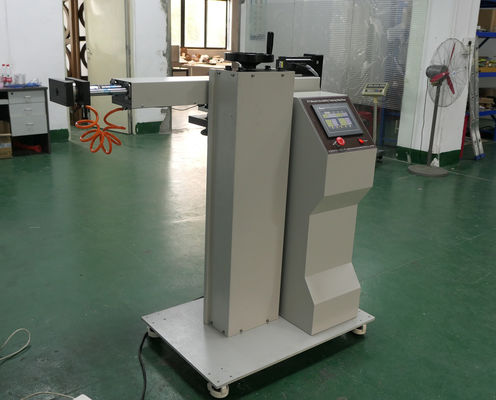

TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal

TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal

  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
  • TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
TV Mount 3000N 50in/Min Durability Lab Testing Equipment Horizontal
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T05M
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 20 working days
Payment Terms: Western Union, T/T
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: TV Mount Durability Test Machine Capacity: 3000N
Force Accuracy: Dynamic ±1% Loading Height: 20~40 In
Weight: 200KG Power Supply: 1∮ AC 220V 50Hz 5A
High Light:

50in/Min Lab Testing Equipment

,

3000N Lab Testing Equipment

,

3000N durability test machine

TV Mount Durability Test Machine



Purpose

This test machine is used to evaluate different type TV mount durability test machine



Principle

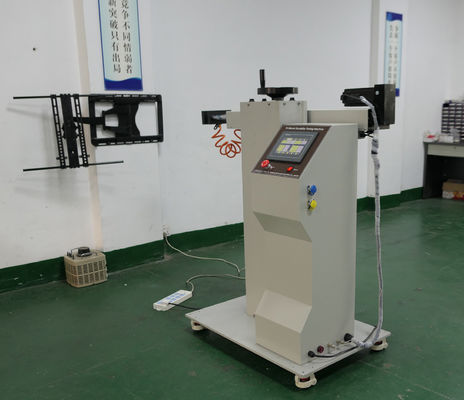

Simulation the daily use process of the analog TV mount, the TV mount hangs the weight of a certain weight, sets the stroke, pushes and pulls the TV mount back and forth, and checks whether it meets the quality requirements.



Functions

Handle wheel: can adjust the height according to the specimen specification

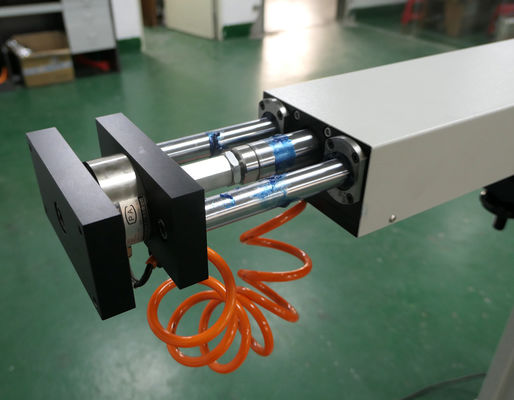

Electric actuator: make the sample back and forth by pushing and pulling, you can set the initial position of the trip and travel distance back and forth, set speed

Force sensor: The real-time monitoring of the force value during the sample endurance process is carried out, and the super force value protection is carried out

Controller: set the test parameter, control the action of the machine

Emergency stop switch:In case of emergency, press the emergency stop

Power switch:turn on / turn off power of the machine



Technical parameters

 Capacity  3000N
 Force loading direction  Horizontal
 Loading method  Fixed stroke,fixed speed
 Force accuracy  Dynamic ±1%
 Force resolution  1/1000
 Loading stroke  0~31 in
 Loading height  20~40 in
 Test speed  Can be set(50~720 in/min)
 Force control way  closed-loop control
 Driver  Servo linear actuator
 Control method  PLC controlled
 Dimension (WxDxH)  50x24x53 in
 Weight  ≈200Kg
 Power Supply  1∮ AC 220V 50Hz 5A
