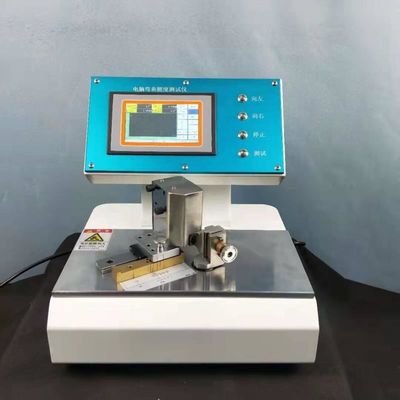

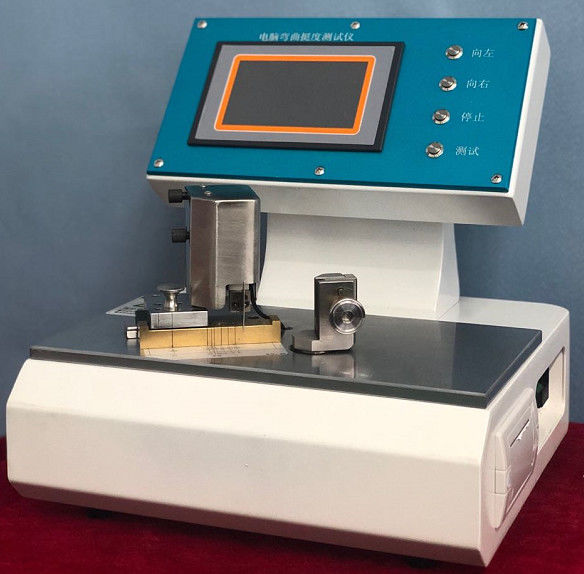

0.01mN Lab Testing Equipment Cardboard Bending Stiffness Tester

0.01mN Lab Testing Equipment Cardboard Bending Stiffness Tester

  • 0.01mN Lab Testing Equipment Cardboard Bending Stiffness Tester
  • 0.01mN Lab Testing Equipment Cardboard Bending Stiffness Tester
0.01mN Lab Testing Equipment Cardboard Bending Stiffness Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Cardboard-Bending-Stiffness-Tester Indication Variability: ≤1%
Bending Angle: Set Arbitrarily Between (1~90)° Resolution: 0.01mN
Relative Humidity: <85% Weight: 16kg
High Light:

0.01mN Lab Testing Equipment

,

0.01mN bending stiffness tester

,

0.01mN Cardboard bending stiffness tester

Cardboard Bending Stiffness Tester



Product Introduction

Stiffness tester is a multi-functional intelligent computerized stiffness tester, suitable for measuring the bending stiffness of paper, cardboard and other non-metallic materials with a thickness of less than 2mm.
The test angle of the instrument can be set arbitrarily between (1~90)°, and the test time can be set arbitrarily within the specified range (3s~30s). With automatic zero test function, it is the first domestic fully automatic stiffness tester that uses a color touch screen as a man-machine interface to display stiffness and time curves in real time. The touch screen is simple and convenient to operate.
This instrument has the functions of testing, displaying, memory, statistics and printing of various parameters included in the standard, and provides scientific data analysis for the detection of the bending stiffness of cardboard. The test result is exactly the same as the Taber method and the electronic method. The test result is calculated by the computer intelligently. Two test units are available: mN or mN.m.



Standards

GB/T 23144 General principles for the determination of static bending stiffness of paper and cardboard
GB/T 22364 "Determination of Bending Stiffness of Paper and Cardboard"
ISO 5628 "Paper and cardboard-Determination of static bending stiffness-General principles"
ISO 2493 "Paper and Cardboard-Determination of Bending Stiffness"



Technical parameters

Indication variability: ≤1%;
Measuring range: (20 ~ 10000) mN (the equivalent bending moment is (1 ~ 500) mN.m);
Resolution: 0.01mN;
Bending length: 50mm, 25mm, 20mm, 15mm, 10mm, 5mm (±0.5 mm);
Bending angle: Set arbitrarily between (1~90)°;
Shows: 5-inch color touch screen;
Printer: Thermal printer, high-speed and silent printing;
Communication output: RS232 (optional))/USB (optional);
Environmental conditions: Indoor temperature (20±10)℃, relative humidity <85%;
Dimensions: 340*330m*340mmmm (length×width×height);
Weight: 16 kg.



Product Features

After the test is completed, return to the starting position at high speed, and the return speed can be set between (1~12);
7.5° and 15° stiffness test (any setting between (1~90)°);
The test time can be set at any number between (3~30)s;
The test angle change is automatically controlled by the motor, which improves the measurement efficiency and reduces the human influence;
It can test 6 kinds of bending lengths: 50mm, 25mm, 20mm, 15mm, 10mm, 5mm (±0.5 mm);
With automatic zero adjustment function, there is no need to manually check the sample before testing;
With measurement statistics, printing and other functions, the measurement time can be set;
The man-machine interface adopts a color touch screen, Chinese and English operating systems, and can comm
unicate with the upper computer software (purchased separately).
