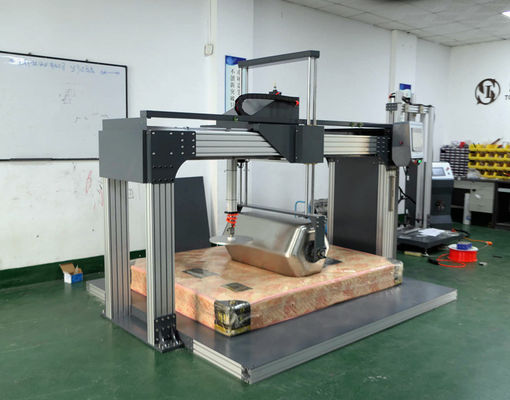

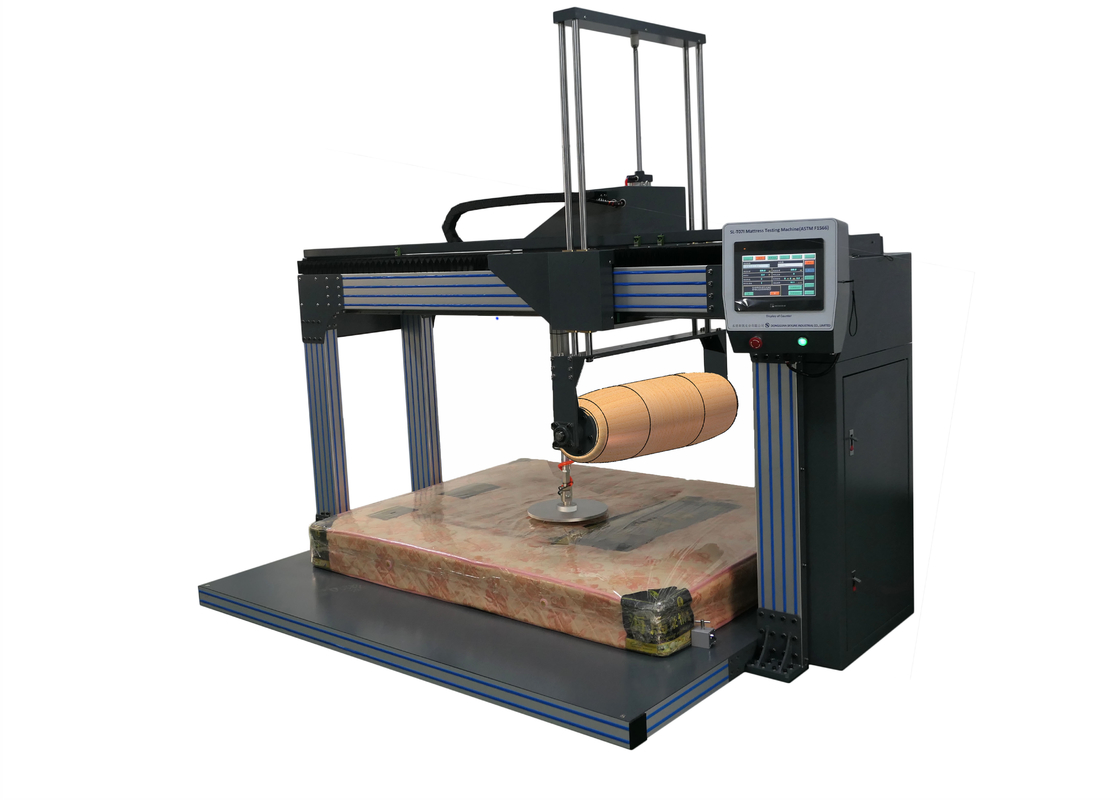

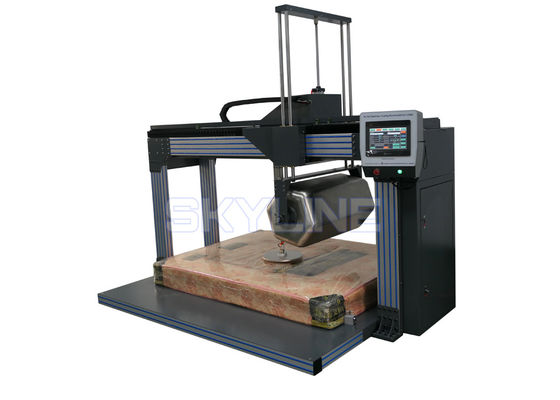

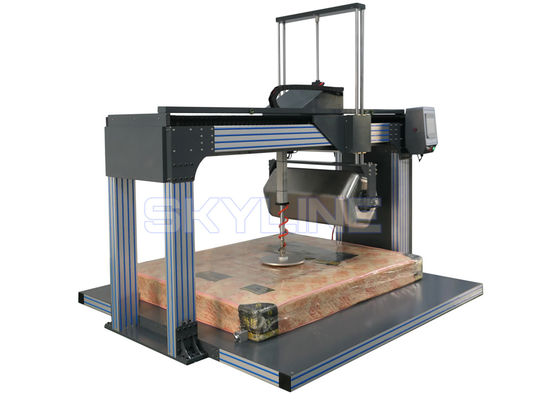

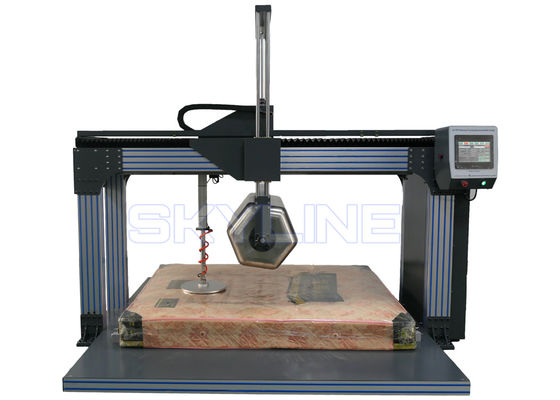

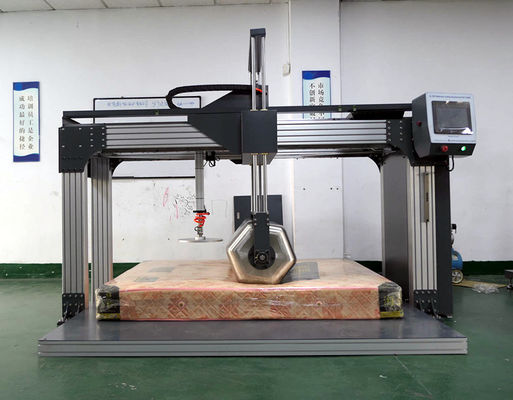

EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine

EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine

  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
  • EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T07I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 30 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Mattress Rollator Testing Machine Controller: PLC+ Touch Screen
Motor: Sevro Actuator Standard: ASTM F1566, EN1957
Stainless Steel Roller: 52KG Cylinder Weight: 140 KG
High Light:

Integrated Mattress Testing Machine

,

Servo Motor Mattress Testing Machine

,

ASTM F1566 Mattress Testing Equipment

SL-T07I EN1957 Mattress Integrated Testing Machine



Product Information of Mattress Testing Machine

To determine the durability and hardness of any type of mattress and boxspring unit (regardless

of the materials) by simulating long term use condition.

New design Mattress Test Machine (Four in one)

It is more compact and smart than the old model with the following features:

Multi-function can do below testing:

a. Durability Testing of mattress surface

b. Hardness / Firmness Testing

c. Height loss measurement

d. Durability test for the edge of mattress



Technical parameters of Mattress Testing Machine

7.2 Durability Test

 Cylinder weight (EN1957)



 140kg, Length 1000mm,Diameter 300mm,R20mm

 Maximum size of mattress  2.2m×2.5m
 Test speed  0-20r/min
 Control method  PLC+ touch screen
 Dimension  3000mm×1510mm×2010mm
 Power  AC220V±10%, 50/60Hz, single phase

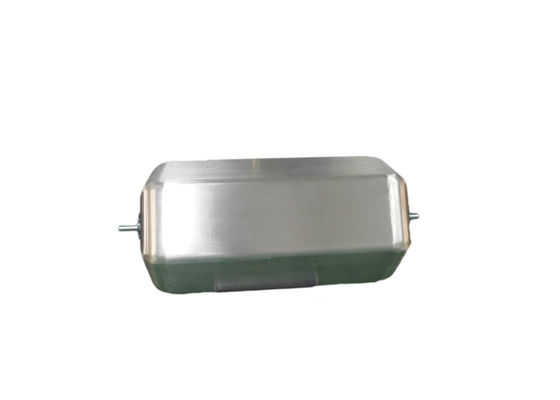

 Accessory  One Hexagonal barrel, Cylinder Roller
 According to different mattress to adjust the rolling stroke (adjust the limit switch position)
 Low coefficient of friction guide, ensure full drum weight on the mattress.
 LCD Touch Screen display provides easy control and setting



8.1 Height Loss and 8.2 Hardness Test (BSEN 1957)

 The loading platen  355 mm diameter, spherical curvature radius 800mm front edge curvature radius 20mm
 The loading speed  20 ~ 300mm/min
 Test run  500mm
 Capacity  200kg
 The loading wheel position adjustment  About 300mm



8.3. Firmness Rating Test

 The loading platen  344 +/-5 mm diameter, 1mm radius bottom edge
 The loading speed  20 ~ 300mm/min
 Test run  500mm
 Capacity  200kg
 The loading wheel position adjustment  About 300mm



9.0 Durability Test of bed edge

 Test load capacity  1000N
 Test Cycle  5000
 Main time  Maintain for (3+/-1)s



Testing Standards

EN1957



Features of Mattress Testing Machine

1. The whole machine frame made of high quality aluminum, with smart and elegant shape

2. Delta brand PLC and Servo Motors

3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor

4. Machine configuration alarm device, indicating the safe operation

5. Electric lifts the Roller, easy to operate.

6.PLC controller with large colorful touch panel

7.Automatically stops after preset cycles completed

8.Over moving limit protection

9.Wooden roller softly contacts the surface of the mattress



The mattress durability tester is used for

Boxspring Mattresses

Innerspring Mattresses

Polyurethane Mattresses



Please review the video showing the machine how to work

https://youtu.be/waWE0HPSFrk

https://youtu.be/V_zqZ-tm54Q
