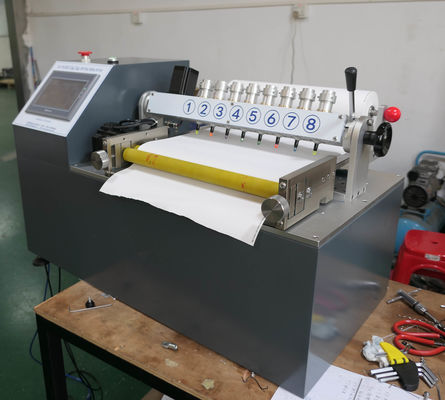

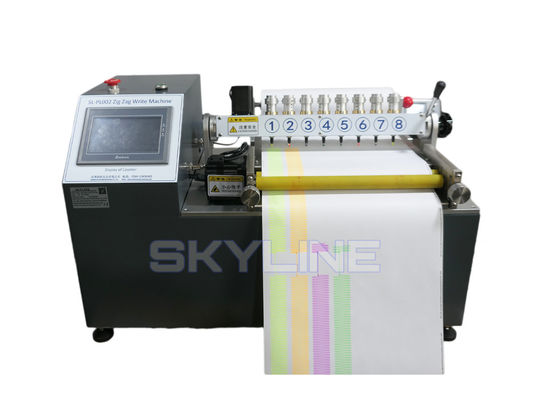

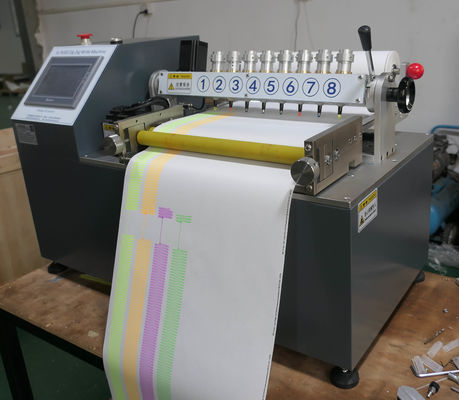

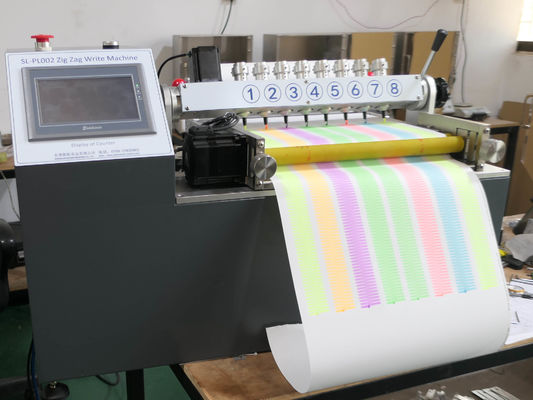

ISO27668-1 50g Load Lab Testing Machine For Zig Zag Writer

ISO27668-1 50g Load Lab Testing Machine For Zig Zag Writer

ISO27668-1 50g Load Lab Testing Machine For Zig Zag Writer
video
ISO27668-1 50g Load Lab Testing Machine For Zig Zag Writer
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-PL002
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 20 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Zig Zag Write Test Machine Load Weight Weight: 50g+/-0.5g
Maximum Sample Diameter: ≤φ24mm Writing Angle: 60°~90° Adjustable
Sample Single Stroke / Full Stroke: 1.375 Inches/2.75 Inches Weight: 112kg
High Light:

50g Load Lab Testing Machine

,

Zig Zag Writer Lab Testing Machine

,

ISO27668-1 Lab Testing Equipment

Lab Testing Equipmen Zig Zag Writing Testing Machine



Use

This machine is used to detect the refill of a pen, and draw a Z shape at a certain speed to check whether the stitching meets the performance required by Article 3.6 of ISO27668-1.



Principle

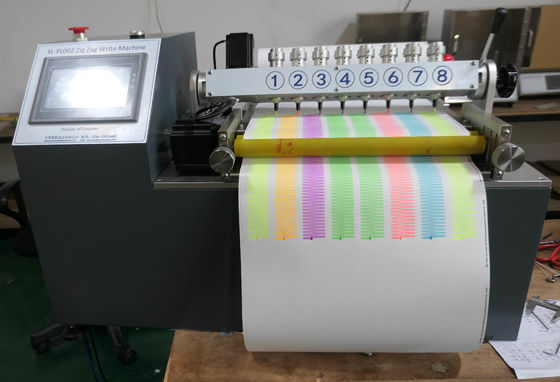

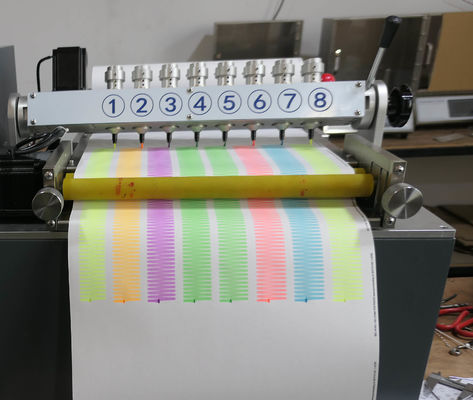

This machine simulates the state of writing with a pen, puts the sample on a certain load and makes it write a Z mark at a certain speed, and checks the structure and performance of the sample.



According to the standard

This tester is made with reference to the requirements of Article 3.6 of ISO27668-1.



Technical parameters

 Sample  Writing pen
 Load weight weight  50g+/-0.5g
 Maximum sample diameter  ≤φ24mm

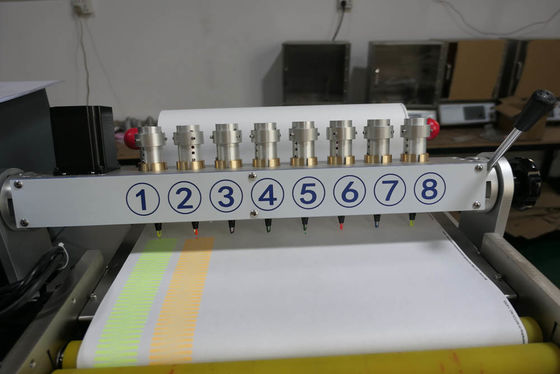

 Number of samples  8 pcs/time
 Sample single stroke / full stroke  1.375 inches/2.75 inches
 Writing speed  1.0m/min-10.0m/min adjustable
 Refill Rotation speed  0.1-3.0 revolutions/min adjustable
 Line spacing between 1mm and 5mm  1.0mm-10.0mm adjustable
 Writing angle  60°~90° adjustable
 Volume (WxDxH)  Host: 90x45x60cm
 Weight  ≈100Kg
 Power Supply 220V, 20A
