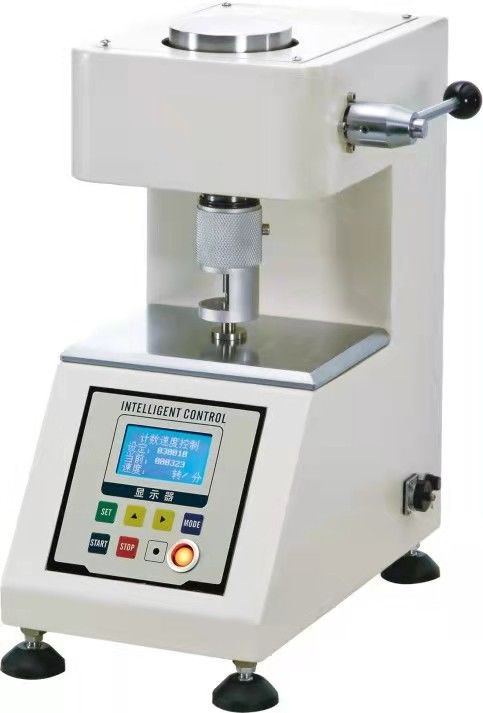

SATRA TM8 Rotary Rubbing Color Fastness Tester For Footwear

Footwear Testing Equipment SATRA TM8 Rotary Rubbing Color Fastness Tester

Application

This machine is suitable for the evaluation test of shoe upper materials, leather, plastics and special colored materials such as textiles after being rubbed by foreign objects. The materials are damaged and the surface color transfer degree evaluation test. It can complete five kinds of dry, wet, sweat, alcohol, and organic solutions. The test method is evaluated by rubbing the rotating wool blanket with the sample and then referring to the gray standard. With power-off memory function

According to standards

QB/T2882, ISO 17700, SATRA TM8, SATRATM14, BS 1006, BS5131

Technical parameters
Specimen size: 60*60mm
Speed: 149±4.8cpm
Wool blanket pad: outer diameter: 25±1mm inner warp: 3±0.5mm
Test load: 7.1±0.2N, 24.5±0.5N
Volume: 30*45*50cm
Weight: 35kg
Power supply: AC220V50HZ

What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
