Flammability Testing Equipment Mask Flame Retardant Tester

Flammability Testing Equipment Mask Flame Retardant Tester

  • Flammability Testing Equipment Mask Flame Retardant Tester
  • Flammability Testing Equipment Mask Flame Retardant Tester
  • Flammability Testing Equipment Mask Flame Retardant Tester
  • Flammability Testing Equipment Mask Flame Retardant Tester
  • Flammability Testing Equipment Mask Flame Retardant Tester
Flammability Testing Equipment Mask Flame Retardant Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL855
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Mask Flame Retardant Tester​ Standards: GB2626 GB19082 GB19083 GBT32610 YY0469 YYT0969
Accuracy Of Afterburning Time: 0.1S Flame Temperature Adjustment Range: 750-950 ℃
Head Mold Moving Speed: (60 ± 5) Mm / S Power Supply: 220V 50HZ
High Light:

Mask Flame Retardant Tester

,

GB2626 Flammability Testing Equipment

Mask Flame Retardant Tester​



Product Introduction

This mask flame retardant tester is developed according to GB2626 and is used to test the fire retardant performance of masks. The applicable standards are: GB2626 GB19082 GB19083 GBT32610 YY0469 YYT0969, etc.



Technical parameters

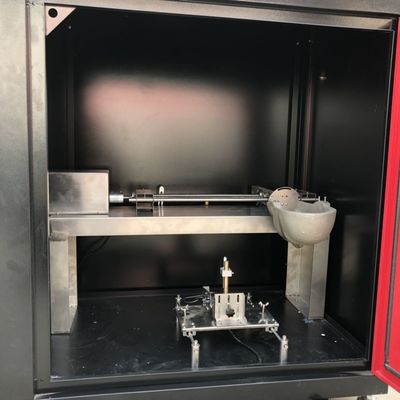

1. The mask head mold is made of metal and simulates human facial features according to the ratio of 1: 1.

2.Burner height adjustable

3.Automatic positioning timing

4. Display afterflame time

5. Equipped with flame sensor

6. Head mold moving speed (60 ± 5) mm / s

7.Diameter of flame temperature detection needle 1.5mm

8. Flame temperature adjustment range 750-950 ℃

9. Accuracy of afterburning time 0.1S

10.Power source 220V 50HZ

11. Gas: propane or liquefied petroleum gas



Operation interface introduction

Test interface

Medical Face Masks Flammability Tester.pdf



Flammability Testing Equipment Mask Flame Retardant Tester 0

Positioning: Click on the head mold to stop above the torch to adjust the direct distance between the torch and the head mold

Run: The head mold starts to move toward the torch and stops after reaching the other position

Exhaust: open and close the exhaust fan on the box

Gas: Open and close the gas passage

Ignition: start high pressure ignition

Lamp: Turn on and off the lighting inside the box

Save: Save the test data after the test is completed

Timer: Recording the after burning time
