IEC 60332-3-10 2000 IEC 60332-3-21~25 2000 Fire Testing Equipment Bunched Wires Vertical Flame Tester BWV

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-BWV01

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	25 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

Standards:	IEC60332-3-10:2000/IEC 60332-3-21~25：2000	Dimension:	1,000±100(W) X 2,000±100(D) X 4,000±100(H) Mm.
Burner:	20.5±0.5kW	Wide Stainless Steel Ladder Dimensions:	500(W) ×3, 500(H) Mm.
Standard Stainless Steel Ladder Dimensions:	800(W) ×3, 500(H).
High Light:	flammability test apparatus , flammability testing labs

IEC:IEC 60332-3-10:2000,IEC 60332-3-21~25:2000 Bunched Wires Vertical Flame Tester BWV

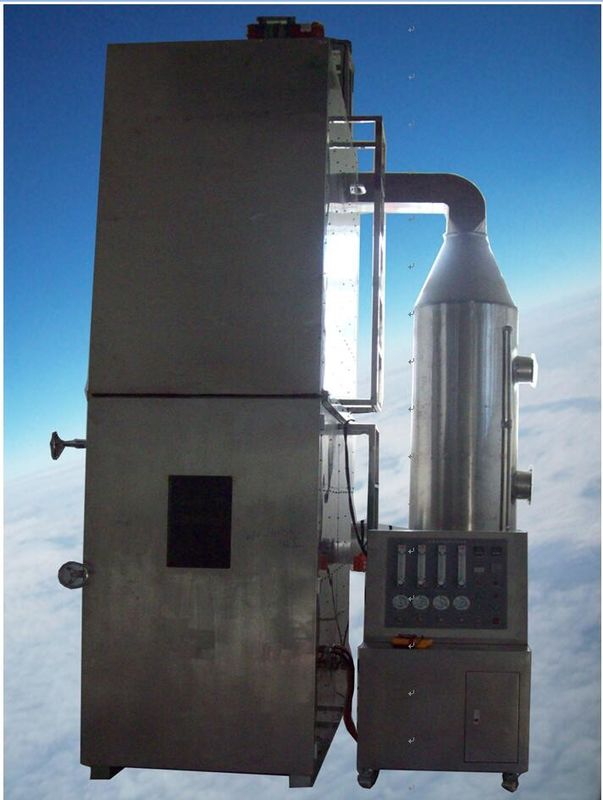

Bunched Wire Vertical Flame Spread Tester is a series conforming to IEC 60332-3-10 (Category A~D) standards. The test measures the expansion of vertical flame to the electronically or optically vertical cable or wire using the standard ignition source while supplying a certain amount of air to a chamber of a defined volume.
Additionally, if bunched cable vertical flame spread testers burner is adjusted by 20 degrees angle, it can be measure under IEEE 383(IEEE 1202) standard. Also, if Heat Release Facility is attached, it can measure fire dynamics value as H.R.R (Heat Release Rate), S.P.R (Smoke Production Rate) and so on.

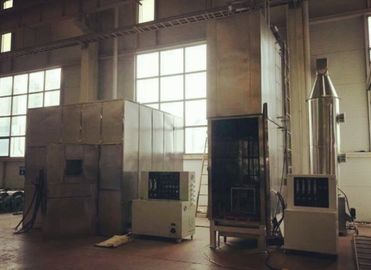

Test chamber has the dimension of 1,000±100(W) x 2,000±100(D) x 4,000±100(H) mm.
The bottom surface of the test chamber is higher than the ground while the rear side is supplemented with insulated material to insulate it from heat.At the lower section of the test chamber, there is a 800±20(W)x 400±10(D) sized hole at the 150±10mm position from the front side of the chamber to supply the air.

There is a 300±30(W)x1,000±100(D) sized exhaust hole at the rear corner of the top section of the test chamber to allow emission of the smoke during the test.

A flame trap is installed at the front side of the burner of the vertical flame spread tester to prevent backfire by propane to ensure the utmost safety.

Unlike the conventional IEC60332-3 equipment, the vertical flame spread tester records all control and test conditions with the computer to add user friendliness.

If stop the excessive combustion test due to Water Spray device installed for extinguish.

The program on the requirement on standard and 70,000Btu/h can be program.

Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm.

Standard stainless steel ladder dimensions: 800(W) ×3, 500(H).

Two sets of standard propane burner and venturi mixtures.

Follow the standard category can program for select a test.

How does fire retardant work?
Fire retardant contains salts (typically fertilizers) that alter the way wildfires burn, decreasing fire intensity and slowing the advance of the fire, even after the water in the fire retardant has evaporated. The water in long-term fire retardants serves primarily to aid in uniform dispersal of the chemical over the target area.
