Electronic Testing Equipment IEC61032 Standard 1mm x 100mm Test Prode

Electronic Testing Equipment IEC61032 Standard 1mm x 100mm Test Prode

    • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
    • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
    • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
    • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
    • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
  • Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-P01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 5 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: 1mm X 100mm Test Prode Brand: SKYLINE

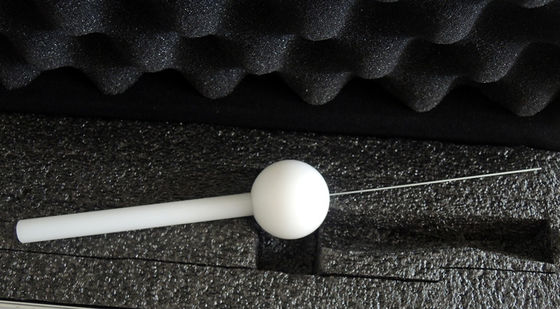

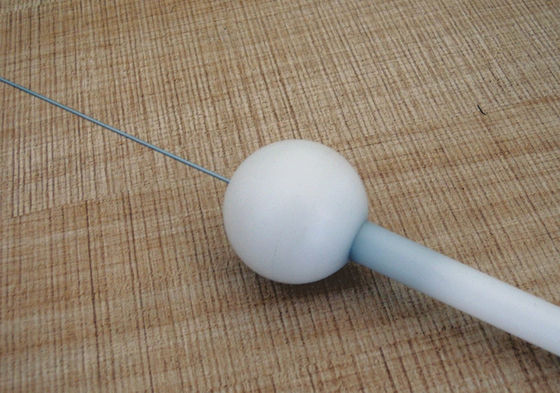

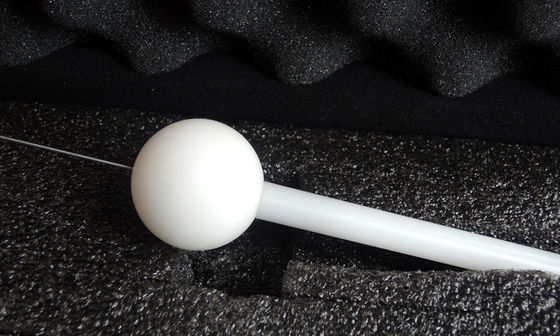

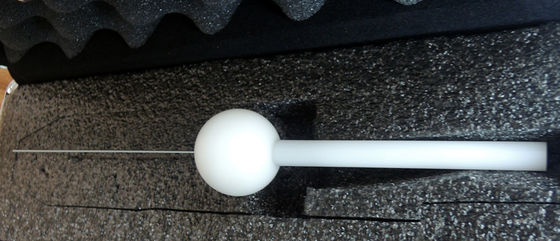

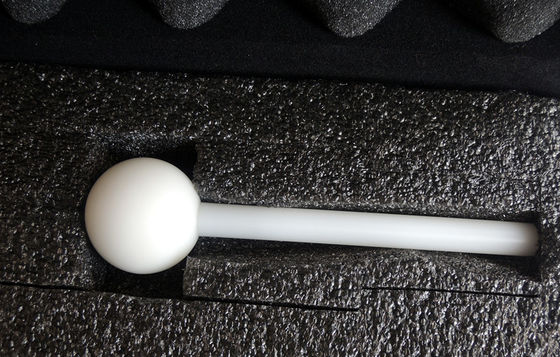

    1mm x 100mm Test Prode


    Overview
    The test tool C probe is made according to GB4706.1, IEC61032 test tool C, GB/T16842 test tool C, IEC60529IP3X, GB4208IP3X, IEC60065, IEC60884, Figure 35, UL and other standards. It is used to test the test piece to prevent human body from touching dangerous parts. Also used to prevent protection checks from hand tools.



    Parameters

    Serial number Technical requirements
    1Φ1 +0.05
    100±0.2
    S φ 35±0.2
    Φ 10
     approx1 00



    Instructions

    Apply a force of 3 ± 0.3N to the lamp or the casing of the household appliance to see if it can enter.

    If the test finger itself has thrust (model ZLT-I03T), when it is inserted into the test position, push the handle to the position indicated by the scale, that is, achieve a thrust of 3N±0.3N, depending on the direction of application. Thrusts of "up", "horizontal", and "down" can be achieved. If the test finger does not have a thrust force itself, the thrust test can be achieved by using a push-pull force gauge connected to the tail M6 thread of the test finger.

    It is worth noting that different types of test products, test probes will be used differently, so please read the relevant standards before use, and test according to the requirements of the standard.



    Precautions

    The metal part of the test probe is hard steel. Pay attention to rust prevention and careful use. It is easy to be damaged or rusted after collision and the size is accurate. Therefore, after each test, please apply anti-rust oil and take care of it.



    Electronic Testing Equipment  IEC61032 Standard 1mm x 100mm Test Prode
