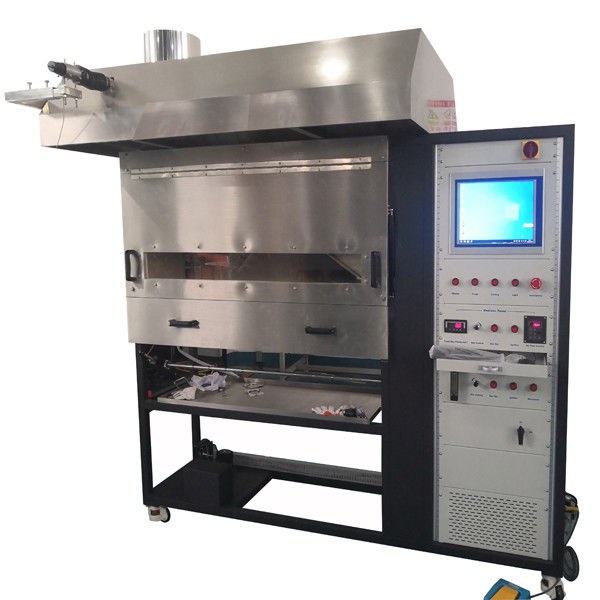

ASTM E648 Building Materials Flammability Tester Radiant Flooring Panel Apparatus

ASTM E648 Building Materials Flammability Tester Radiant Flooring Panel Apparatus

ASTM E648 Building Materials Flammability Tester Radiant Flooring Panel Apparatus

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL086

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Radiant Flooring Panel Apparatus Standards: ISO 9239-1, ASTM E 648, ASTM E 970, NFPA 253
Dimension Testing Chamber: 2220(W)×1500(D)×2650(H)mm Control Chamber: 600(W)×600(D)×1600(H)mm
Gas Control Chamber: 600(W)×600(D)×1000(H)mm Power: AC 220V, 50/60Hz, 25A
Weight: 220kg Air Supply Option Propane: 95%

Building Materials Flammability Tester Radiant Flooring Panel Apparatus

Application
To measure the critical radiant flux of flame stop spreading horizontally, and smoke density of flooring material during test.

Features
1. Blower for gas supply of radiant plate can supply gas continuously, while air compressor supply gas uncontinuously.
2. Heat Flux meter, portable water cooling system without running water supply.
3. Ventilation hood of stainless steel on the top of the chamber.
4. Inner chamber of Heat and corrosion resistant Aluminum silicate plate.
5. Heat resistant honeycomb ceramic thermal radiant plate 300mmX450mm, inclined at 30 degree.
6. T-shape porous burner with auto ignition system ignites the specimen with automatic push system.
7. Gas control board. Needle valve control the height of burner flame, MFC controls the gas flux and digital display.
8. Inverter control blower output, ventruri control the proportion of air and gas, and flame is stable, and accurate.
9. porous calibration apparatus: adjust radiant plate output by turning upward, left or right.
10. IR radiometer shows the temperature of the radiant plate.
11. Optional smoke density testing system.
12. Optical system 2900 ± 100 K light advanced optical signal receiver.
13. integrated design with 19" PC of Lab view software.
14. Chimney with1pc thermocouple, and 1pc thermocouple inner Chamber controlled by software.

Standards
ISO 9239-1 reaction to fire test of flooring material, Part 1, measure the combustion performance of flooring material with radiant heat.
ISO 9239-2 reaction to fire test of flooring material, Part 2, measure the horizontal spread of flame, exposed to 25kw/m2 heat flux.
ASTM E 648 Standard test method for flooring covering system CHF with heat radiant energy source.
ASTM E 970 Standard test method for flooring material CHF of exposed attic floor insulation using heat radiant energy source.
NFPA 253 Standard test method for CHF of floor covering system with heat radiant energy source.
DIN 4102

Specification
 Dimension testing chamber  2220(W)×1500(D)×2650(H)mm
 Control chamber  600(W)×600(D)×1600(H)mm
 Gas control chamber  600(W)×600(D)×1000(H)mm
 Power  AC 220V, 50/60Hz, 25A
 Weight  220kg
 Air supply option propane  95%



Test Report

Report
Testing agency
Standard
Operator   Test date
Ambient temperature   Environment humidity
Equipment deadline
Product name   Sample serial number
Model specification
Sample size   Device Code
Material density (g/㎡)   Test time(s)
Debug balance
Test Results:
Distance (mm) Flame front end time(s) Distance(mm) Flame front end time(s)
60   560
110   610
160   660
210   710
260   760
310   810
360   860
410   910
460   960
510   1100
The front end of the flame reaches the longest distance (cm)   Critical radiant flux(kW/m2)
Total smoke value(%.min)   Maximum absorption rate(%)
10min flame front end reach distance(mm)   10min critical radiant heat value(kW/m2)
20min flame front end reach distance(mm)   20min critical radiant heat value(kW/m2)
30min flame front end reach distance(mm)   30min critical radiant heat value(kW/m2)
Ignition time(s)   Flame extinction time(s)
The phenomenon observed during the test:
