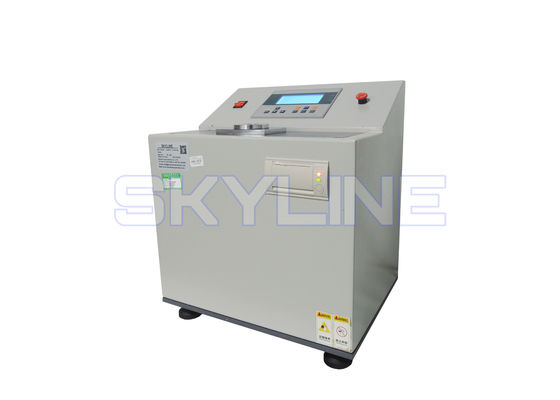

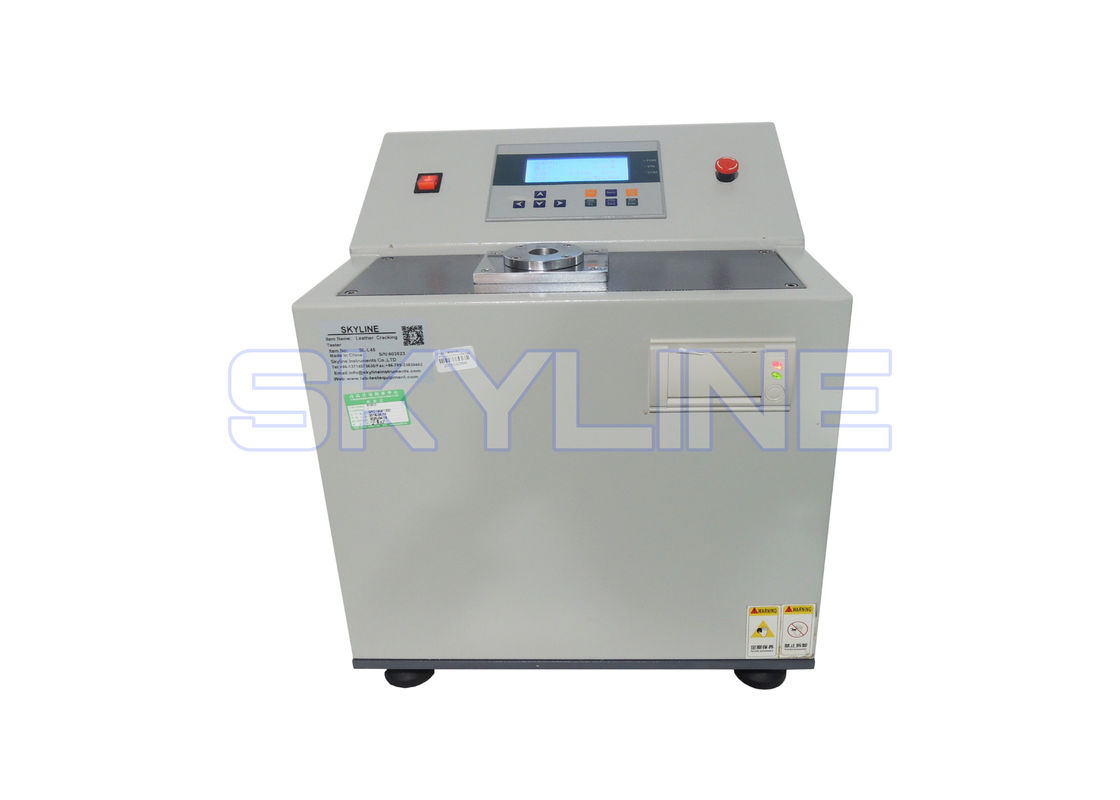

DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester

DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester

    • DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
    • DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
    • DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
    • DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
  • DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-L45

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    Standards: DIN53325, ISO3379 Measure Area: Φ25mm
    Testing Speed: (12±2)mm/min Weight: 45kg
    Capacity: 1000N Power: 220V/110V, 50Hz/60Hz

    Leather Testing Equipment Leather Cracking Tester



    Use

    This instrument is used to test the anti-crack index of the upper, various thin leather and leather surface.



    Principle

    The instrument pushes the steel ball up from the inner side of the leather at a speed of 12 +/- 2 mm/min. When the leather surface is cracked, the height of the rise is the crack value.



    Standard

    DIN53325, ISO3379



    Technical Parameters

     Control System  LCD display
     Unit switching  Kg, N, LBS
     Diameter after sample fixation  Φ25mm
     Steel ball diameter  Φ6.35mm
     Force range  0~1000N
     Force accuracy  ±1%
     Volume  44*33*48
     Weight  45kg
     Power supply  1∮ AC 220V 2.5A or specified by country



    Please review video of the Leather Cracking Tester operation as below link:

    https://youtu.be/h-xz1cHB4IM



    DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
