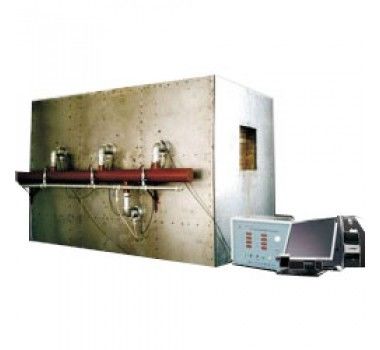

Fire Testing Equipment Cable Busway Flammability Test Furnace For The Test Of Flame Retardant

Fire Testing Equipment Cable Busway Flammability Test Furnace For The Test Of Flame Retardant

Fire Testing Equipment Cable Busway Flammability Test Furnace For The Test Of Flame Retardant

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Power Cable Busway Flammability Test Furnace Standards: GA/T537-2005
Combustion Gas Source: Propane, Liquefied Gas Air Flow: 0-50m3 / Min
Measurement Accuracy: ≤ ± 0.5 M3 / Min Working Voltage: AC380V±10% 50Hz

Power Cable Busway Flammability Test Furnace


Uses

Suitable for the test of flame retardant, fireproof and fire resistance of busbar trunking system (busbar trunking)


Technical parameters
1. Working voltage: AC380V±10% 50Hz; power consumption: 5KW
2. Furnace pressure measurement range: 0-100Pa measurement accuracy:
3. Air flow: 0-50m3 / min measurement accuracy: ≤ ± 0.5 m3 / min
4. Combustion gas source: propane, liquefied gas
5. Gas tank capacity: 50kg × 4
6 Test temperature: programmed temperature 60min room temperature - 925 ° C 120min
7. Room temperature -1050 ° C 180min room temperature -1115 ° C 240min
8. Room temperature -1150 ° C
9. Furnace temperature: ± 15 ° C
10. The internal temperature of the test piece: ± 10 ° C
11. Test piece backfire temperature: ± 4 ° C
12. Temperature sensor:
13. In the furnace: 6 armored nickel-chromium-nickel-silicon K-value thermocouples Accuracy class: II
14. Backfire: 6 armored nickel-chromium-nickel-silicon K-value thermocouples Accuracy class: II
15. Timing range: 0-360min Timing accuracy: <±2s.
16. The maximum horizontal burning length of the sample: 2.4m
Vertical maximum burning length of sample: 1.6m
Equipment dimensions: length × width × height (3 × 2 × 2.5) m;



Standard

GA/T537-2005
