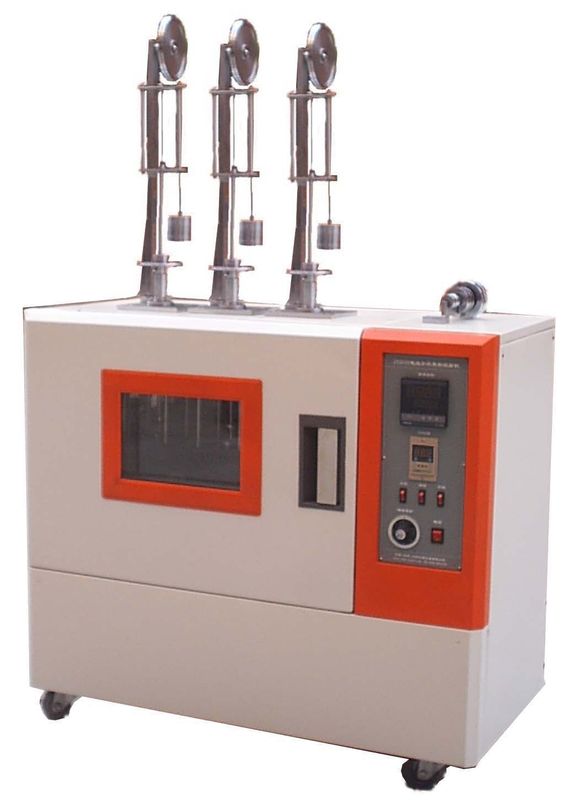

UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation

UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation

  • UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation
  • UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation
UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Wire Heating Deformation Testing Machine Standards: UL1581
Test Device: 3 Groups Temperature: Normal Temperature ~300 °C
Inner Box Material: SUS#304 Stainless Steel. Weight: 113kg
High Light:

flammability test chamber

,

flammability test apparatus

UL1581 Wire Heating Deformation Testing Machine



Uses

Used to test the degree of thermal deformation of materials such as plastic and wire skin


Technical Parameters
Test device: 3 groups
Temperature: normal temperature ~300 °C
Weight: 50, 100, 200, 500, 1000g each three
Scale: Japan MITOTOYO 0.01/10mm
Volume: inner box size: length 600mm * depth 400mm * height 360mm
Outer box size: length 1100mm* width 620mm* height 1730mm
Inner box material: SUS#304 stainless steel.
Outer box material: 1.5mm steel plate, using electrostatic baking paint
Insulation material: high density asbestos
Weight: 113kg





What is wire heating?
Resistance heating wire is used in a variety of applications for generating heat. Household use can be found in toasters, portable space heaters, warming plates and more. Stove burners are an example of an electrical element used to create heat. Industrial furnaces and dryers use wire elements to produce heat.



UL1581 Wire Heating Deformation Testing Machine For Test The Degree Of Thermal Deformation 0
