DIN 4102-1 ISO 11925-2 ( PLC ) Control Building Materials Flammability Ananlyzer

DIN 4102-1 ISO 11925-2 ( PLC ) Control Building Materials Flammability Ananlyzer

DIN 4102-1 ISO 11925-2  ( PLC ) Control Building Materials Flammability Ananlyzer

Product Details:

Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD
Packaging Details: plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Building Materials Flammability Ananlyzer Standards: DIN4102-1 DIN 53438 EN ISO 11925-2
Combustion Angle: 0 ° (vertical), 45 °. Dimension: 400mm(W)*700mm(D)*600(H)
Power: AC 220V, 50/60Hz, 10A Weight: 50kg

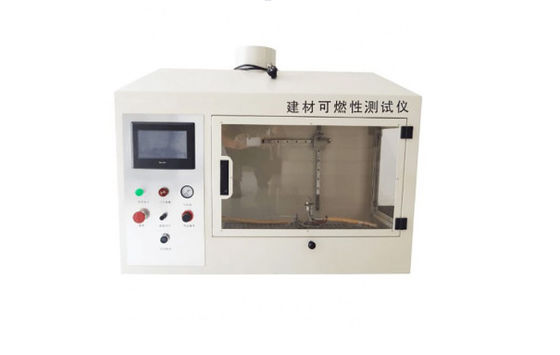

DIN 4102-1 ISO 11925-2 Building Materials Flammability Ananlyzer



Introduction:

DIN 53438 ISO 11925-2 Building Materials Flammability Ananlyzer is designed

and made according to ISO11925-2, it is used to test building material under

condition in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of this building material products.



Application:

Building Materials

Rail

IMO



Standards:

DIN4102-1            Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements                                         and testing

EN ISO 11925-2   Reaction to fire tests -- Ignitability of products subjected to direct impingement of flame -- Part 2: Single-flame                                 source test

DIN 53438            Testing of combustible materials


Features:

1. Box paint treatment, beautiful.

2. The combustion chamber dimensions: length 700mm *width 400mm * high 600mm.

3. The flame height can be adjusted, automatic ignition.

4. The flame burning application time and hold time can range from 0 to 99

minutes 99 seconds regulation.

5. Combustion angle: 0 ° (vertical), 45 °.

6. The burner can be moved in a horizontal direction.

7. Glass doors for easy observation test.

8. All fixtures are made of stainless steel; beautiful and anti-corrosion.

9. Equipped with two types of stainless steel sample holder. With flame height measuring.

10. High degree of test automation, test data accurate, easy to operate.



Control System:

1.Programmable Logic Controller (PLC) Control.

2.Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection.

3.LCD touch screen display.

4.Real-time monitoring of experimental data, queries six samples of experimental

data, query alarm content.



Specification:

 Product Name  DIN 53438 ISO 11925-2 Building Materials Flammability Ananlyzer
 Dimension  400mm(W)*700mm(D)*600(H)
 Power  AC 220V, 50/60Hz, 10A
 Weight  about 50kg
