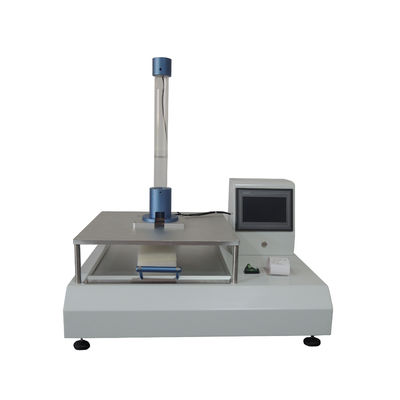

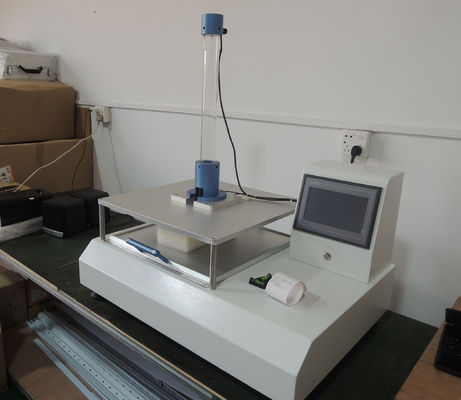

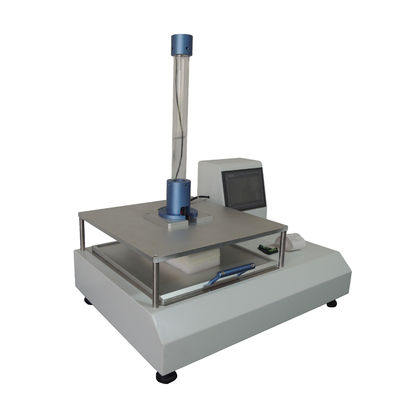

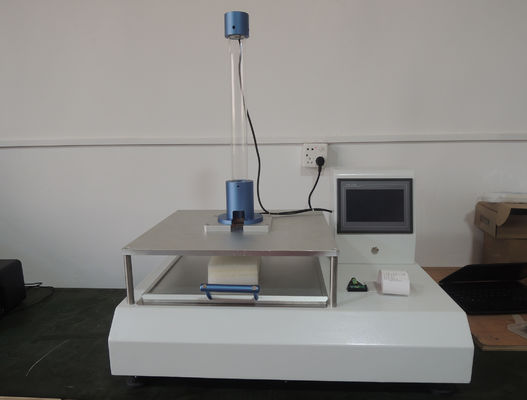

Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam

Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam

    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
    • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
  • Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-F001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: Plywood case
    Delivery Time: 35 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Sponge Rebound Rate Tester Steel Ball Drop Distance: 457 ± 0.5% Mm
    Steel Ball Diameter: ¢16±0.05 Mm Falling Ball Rebound Rate Accuracy: <0.5%
    Test Sample Size: 380 Mm × 380 Mm × 100 Mm (L*W*H) Standard: ISREAL Standard SI518,D3574 And ISO8307

    Sponge Rebound Rate Tester


    Instrument function

    This machine is designed and manufactured according to ISREAL Standard SI518, conforms to ASTM American Standard D3574 and ISO8307 test standards. It also meets the test method of urethane foam SES N3296 for Japanese automotive seat cushion. It is suitable for measuring the falling ball resilience of flexible polyurethane foam. The instrument can freely fall on the foam sample at a specified height by a given diameter and mass of the steel ball, and calculate the percentage of the ratio of the rebound height of the steel ball to the falling height of the steel ball, and the rebound rate to rebound. The rate indicates the rebound resilience of the foam. The machine is controlled by a microprocessor, LCD Chinese display, and can print test data. The machine is safe, reliable and has high measurement accuracy.



    Technical parameters

    1. Steel ball drop distance: 457 ± 0.5% mm

    2. Steel ball diameter: ¢16±0.05 mm

    3. Falling ball rebound rate accuracy: <0.5%

    4. Test sample size: 380 mm (length) × 380 mm (width) × 100 mm (height)

    5. Automatic calculation of average rebound rate



    Main configuration

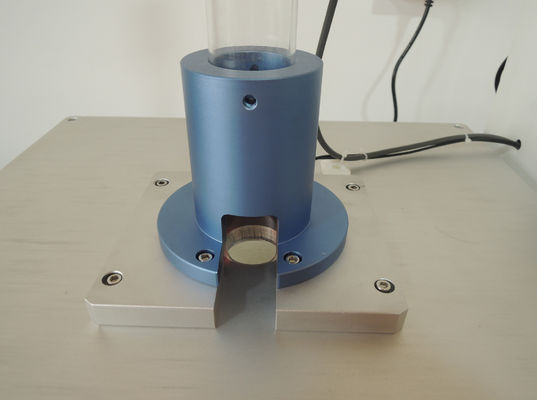

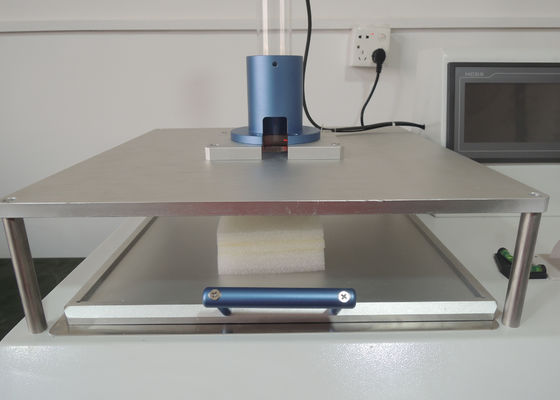

    A set of mainframes (including release mechanism, height adjustment mechanism)

    A set of optical fiber distance measuring sensors, a set of control boxes (LCD touch screen control), a magnetic bar

    Sponge Rebound Rate Tester For Measuring The Falling Ball Resilience Of Flexible Polyurethane Foam
